ACOPOWER 500 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 500 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 5pcs 100 Watt Monocrystalline Solar Panels, 3000W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 3pcs 200Ah Gel Deep Cycle Battery, 40-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

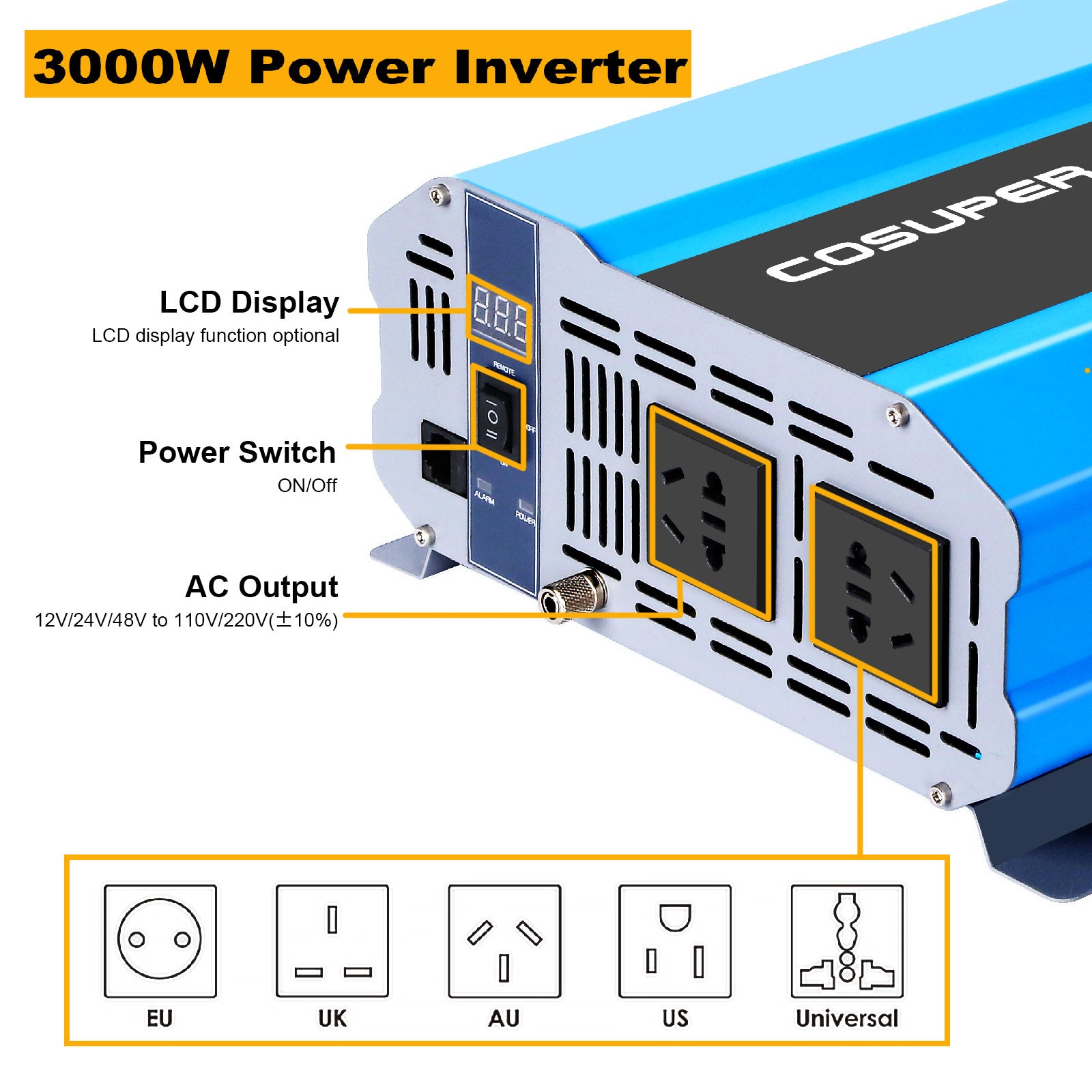

3000W Inverter 12VDC to 120VAC
• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 12.1lb
• dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch
12V 200 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 200Ah
• dimension(inch): 20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
• Approx. Weight: 62.5kg(137.5lbs)±3%
MPPT 40A Charge Controller
• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
Package List:
• 5PCS 100W Mono Solar Panel
• 1PC 3000W Inverter
• 3PC 200Ah Gel Battery
• 1PC 40A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 5 Sets Mounting Z Bracket
• 2 Pairs 30ft 12AWG PV Cable
• 3 Pair 1Ft 2AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 2 Pairs y branch solar panel connectors
