ACOPOWER 330 Watt Flexible RV Solar system comes with everything you need to start Producing Free, Clean Power from the Sun! Perfect for RV's, Boats, Cabins and Back-up Power! Solar Powered
Specification:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

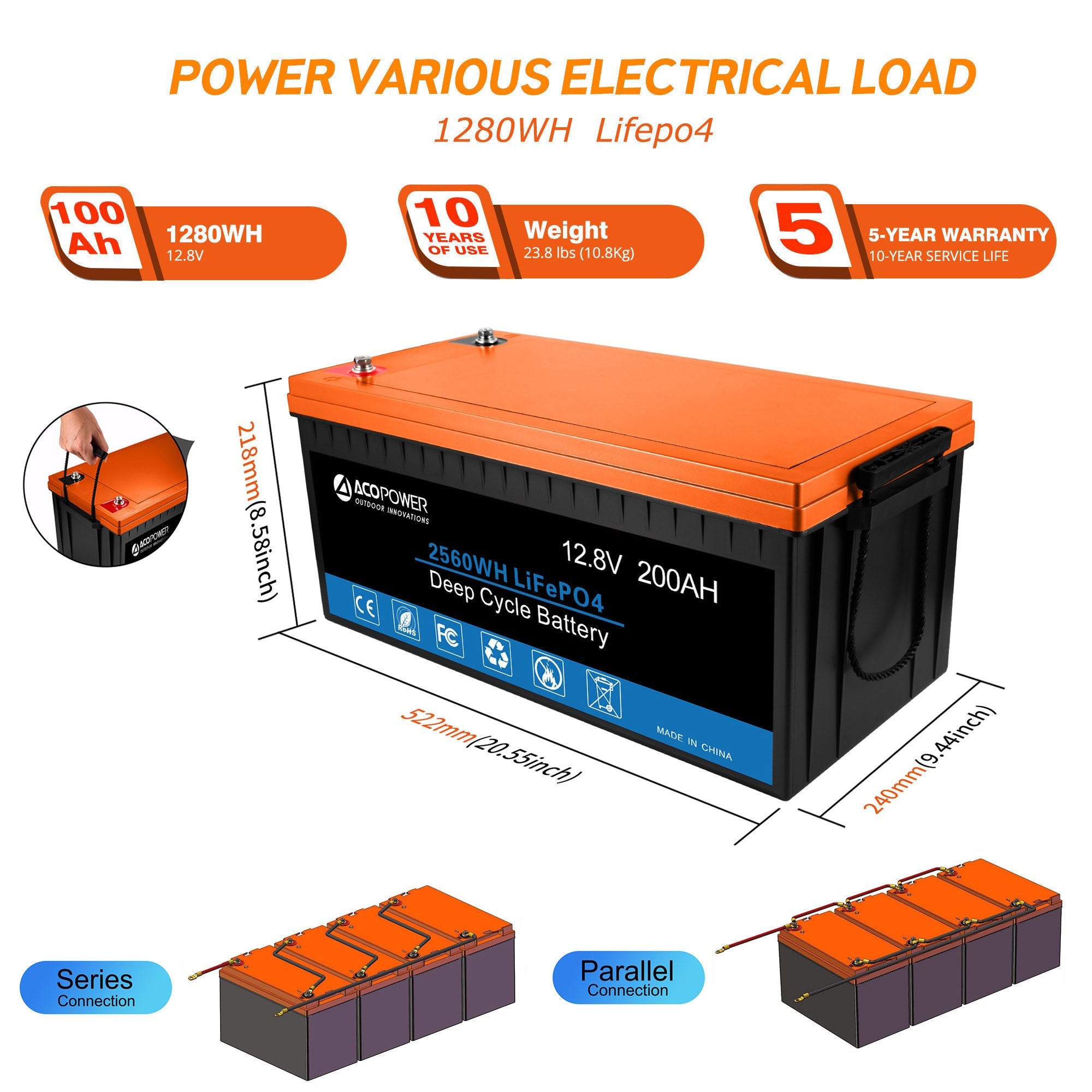

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:2560WH
Depth of Discharge (DoD): 100%
Standard charge current: 50A
Max continuous charge current: 100A
Max continuous discharge current: 200A
dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
Approx. Weight: 48.94lb

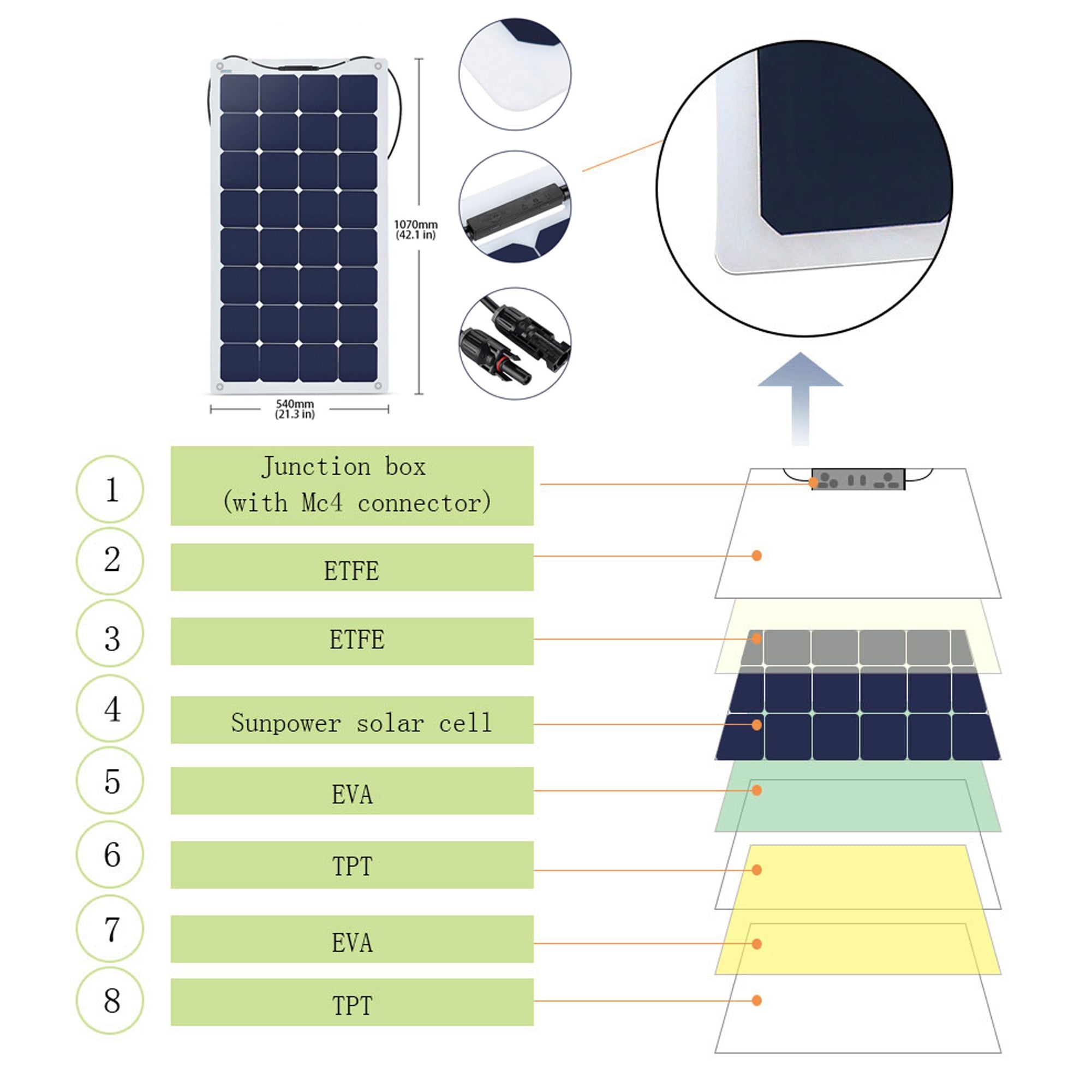

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage(Voc):20.8V
Max Power Voltage(Vmp):17.6V
Short Circuit Current(Isc):6.87A
Max Power Current(Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

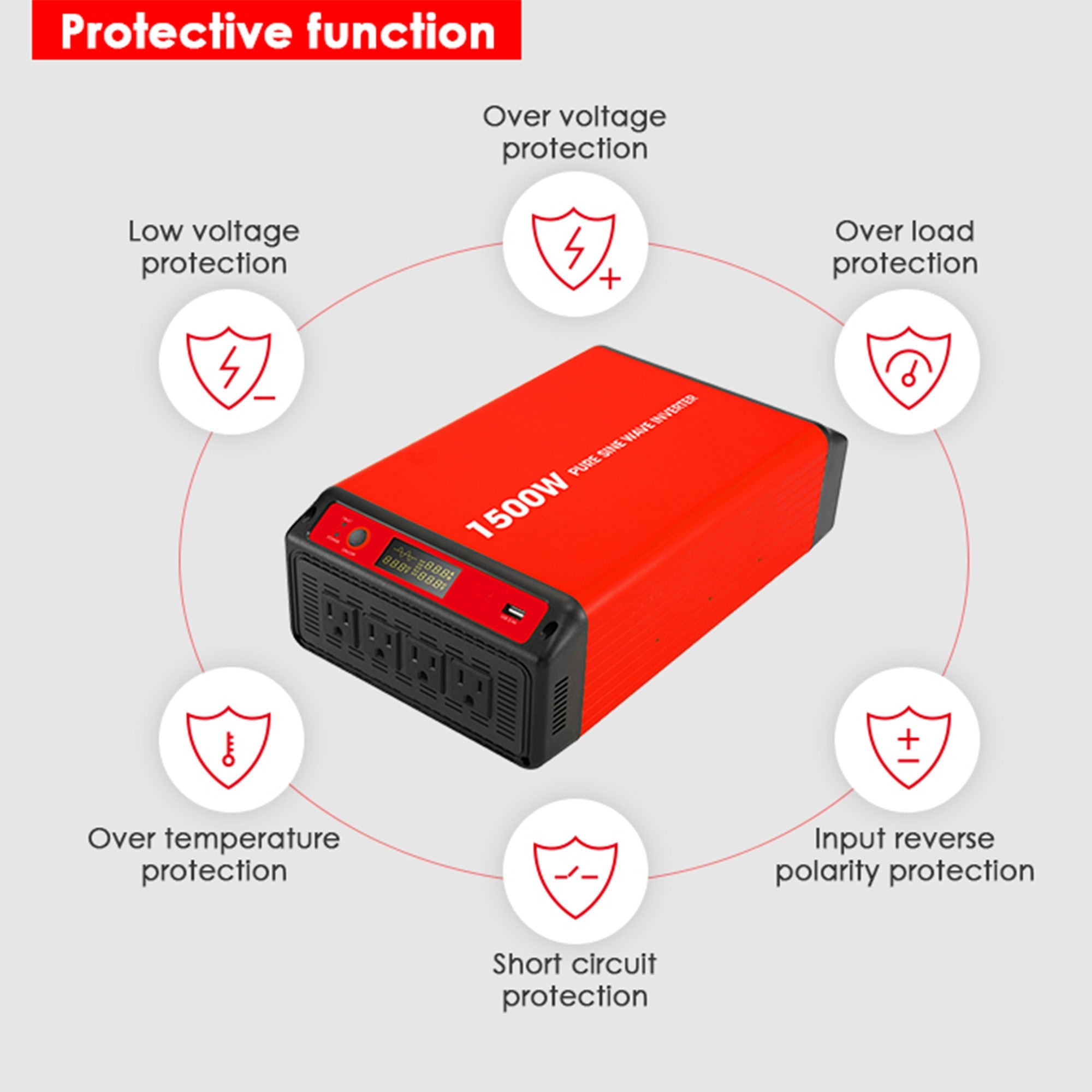

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

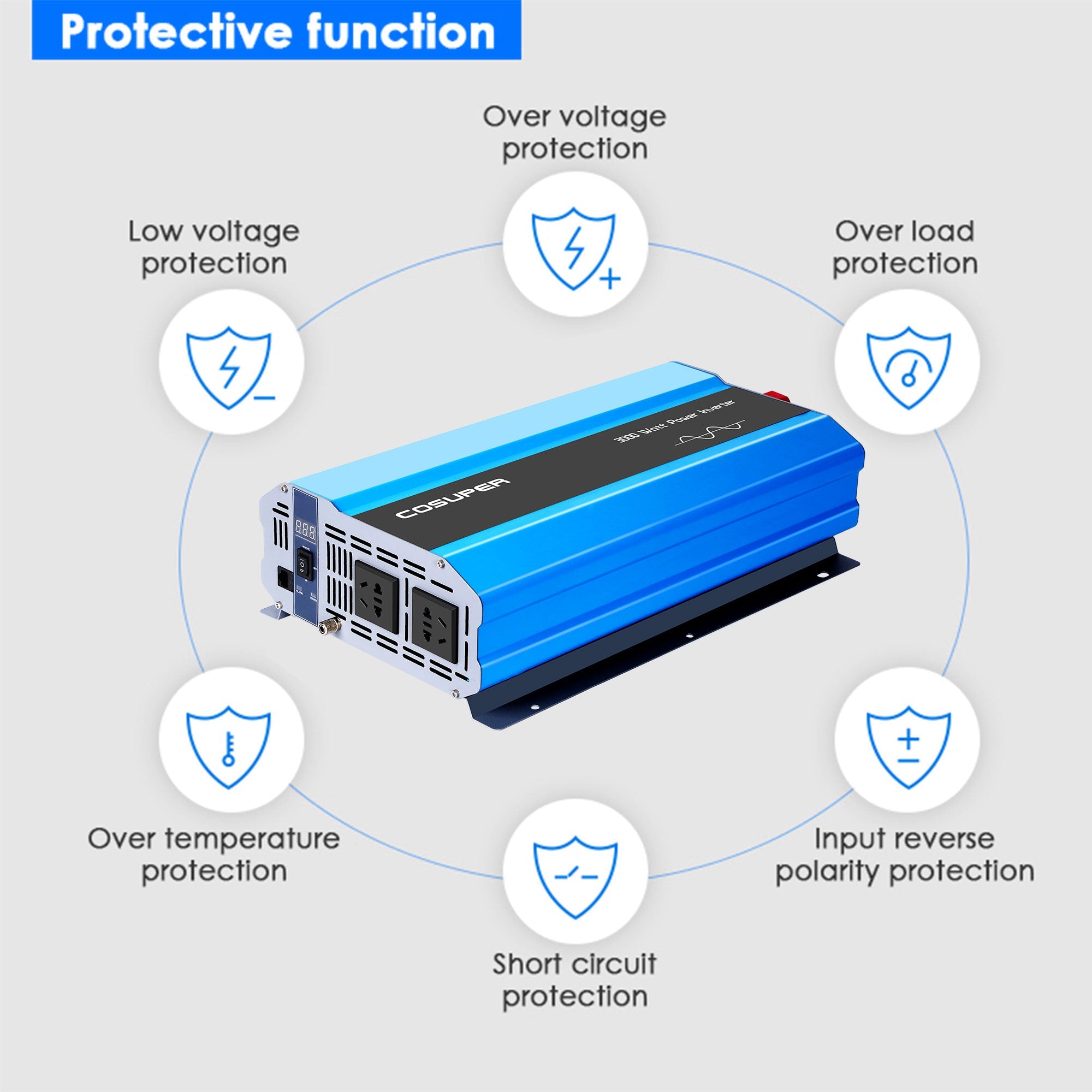

3000W Pure Sine Wave Inverter
Continuous output 3000W
Surge Power 6000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 12.1lb
Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

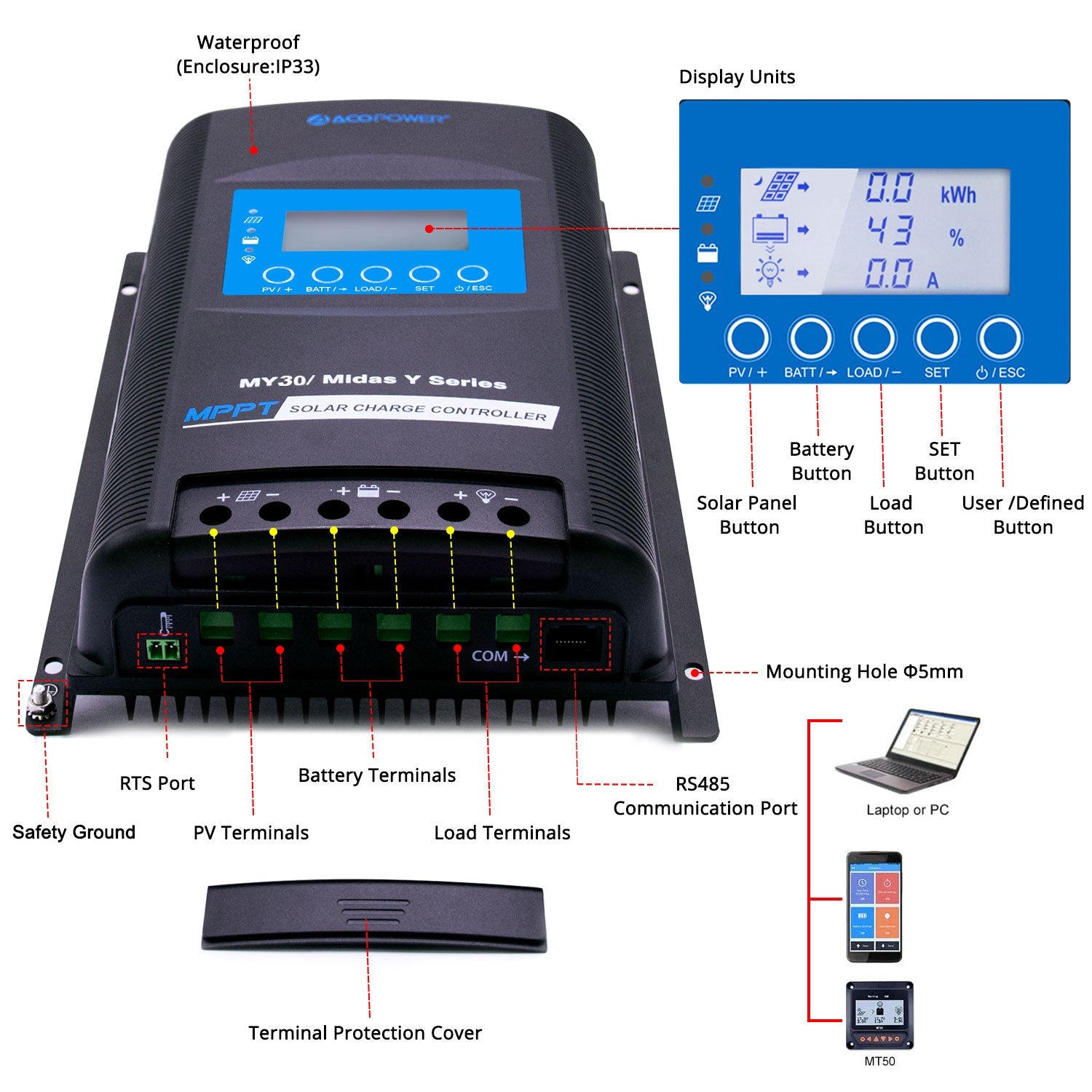

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W,24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
MPPT Solar Charge Controller 40A
Rated charge current: 40A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/520W,24V/1040W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

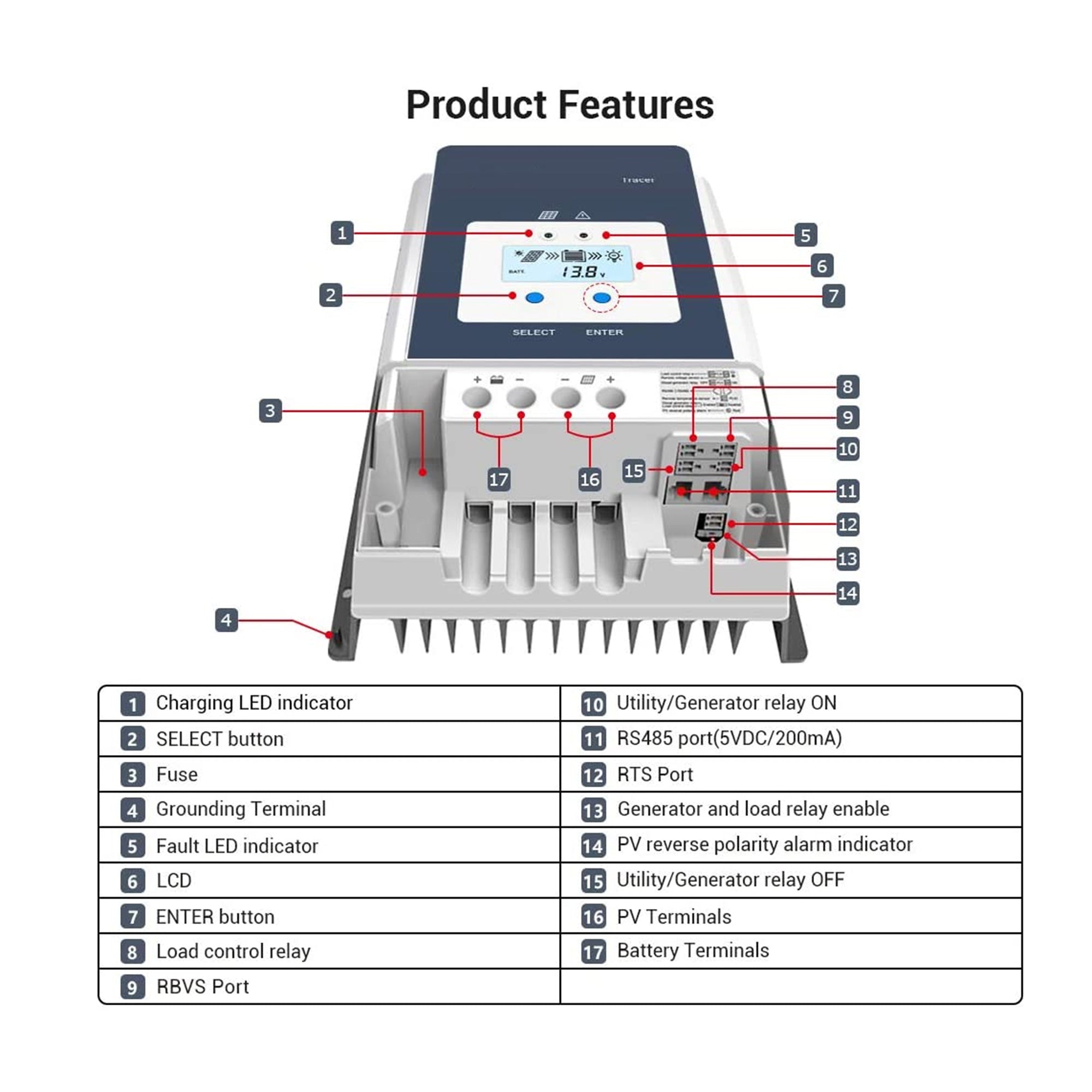

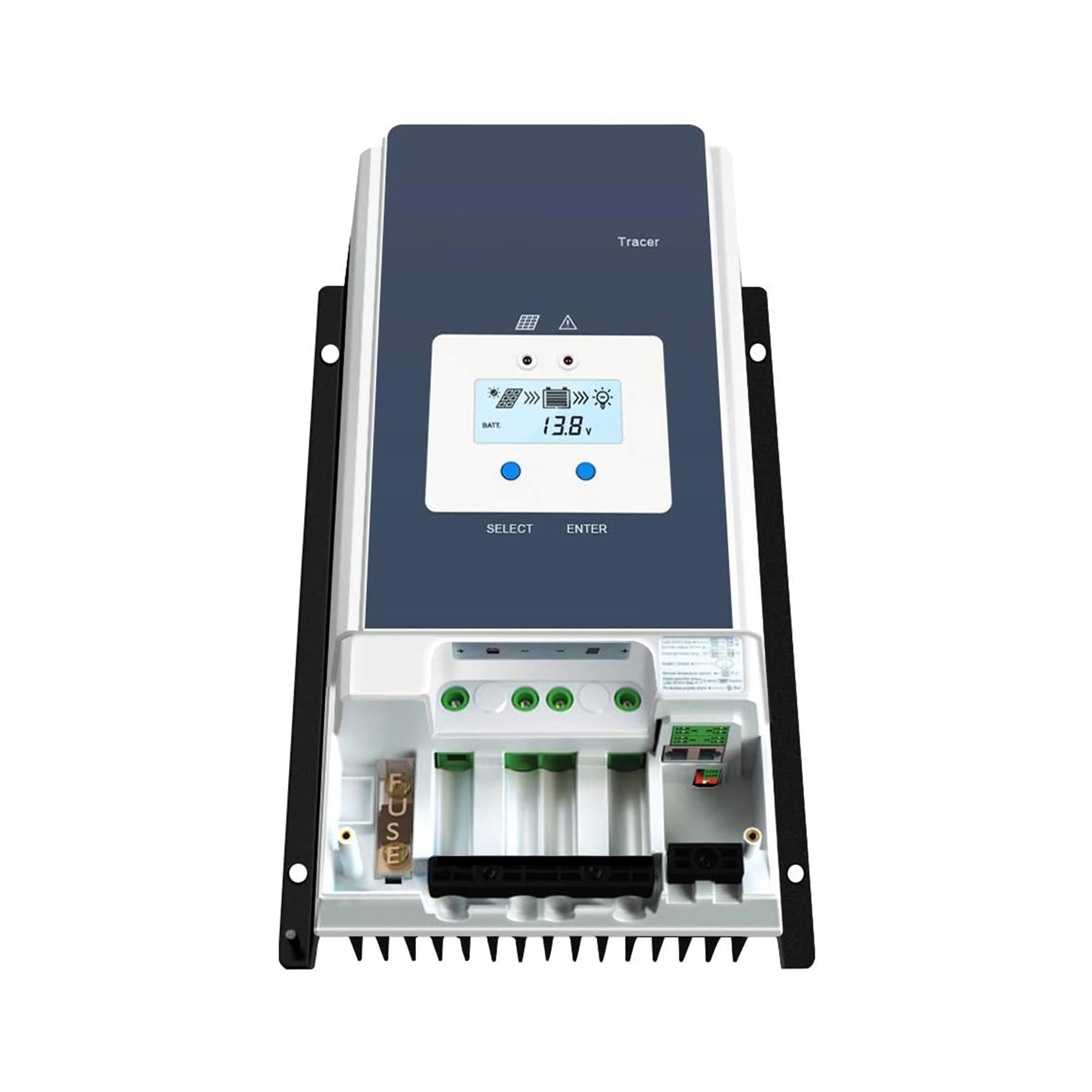

MPPT Solar Charge Controller 50A
Rated charge current: 50A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPPT Solar Charge Controller 60A
Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

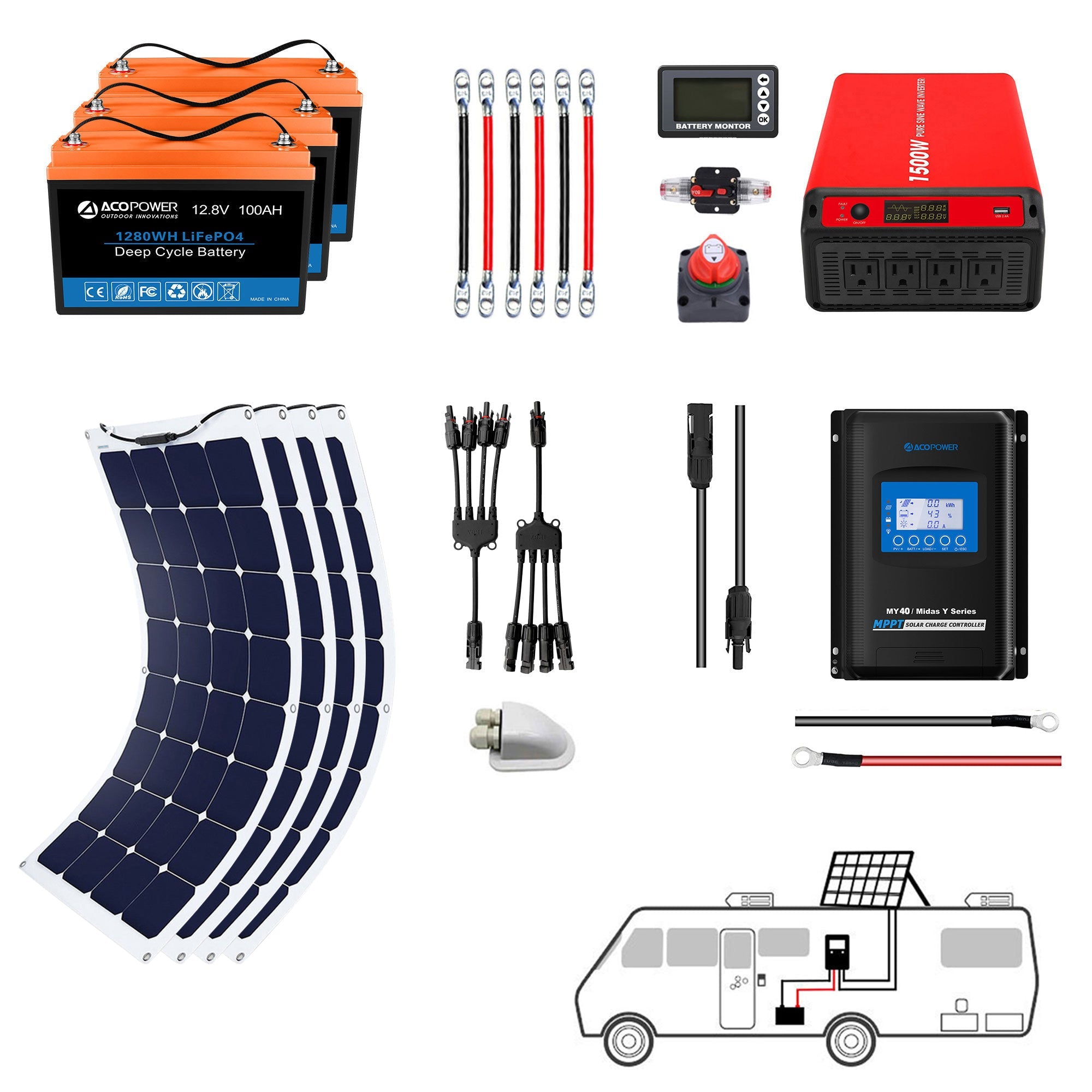

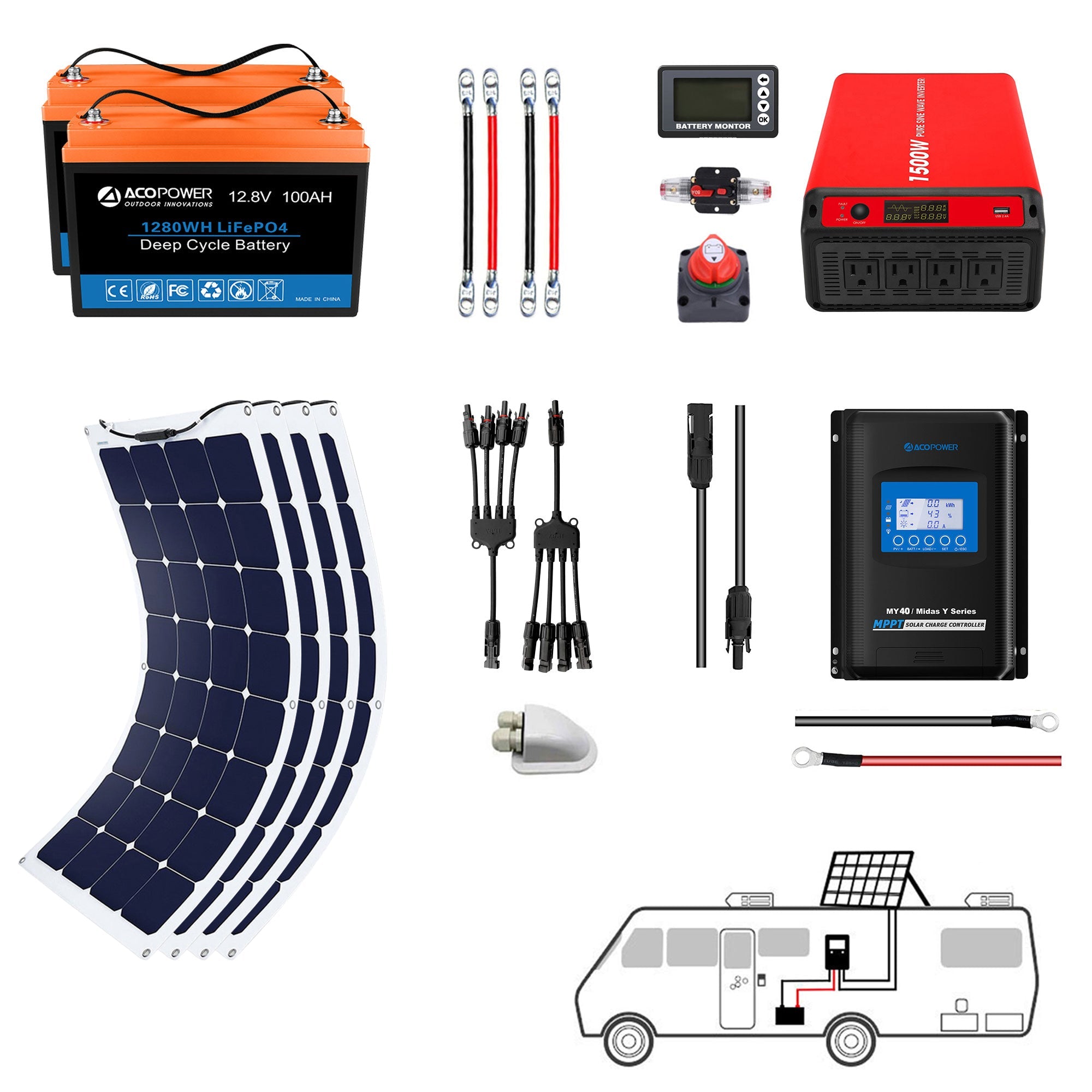

SKU | Battery | Solar Panel | Inverter | Charge Controller | Monitor | Switch | Fuse | Z Bracket | Battery Cable | All necessary Cables |
HYL200AH-F220W | 2pcs 100Ah | 2pcs 110W | 1.5kw | 30A | 1pc | 1pc | 60A | 2 sets | 2 Pairs | Y |
HYL200AH-F330W | 2pcs 100Ah | 3pcs 110W | 1.5kw | 30A | 1pc | 1pc | 60A | 3 sets | 2 Pairs | Y |
HYL200AH-F440W | 2pcs 100Ah | 4pcs 110W | 1.5kw | 40A | 1pc | 1pc | 60A | 4 sets | 2 Pairs | Y |
HYL200AH-F550W | 2pcs 100Ah | 5pcs 110W | 1.5kw | 40A | 1pc | 1pc | 60A | 5 sets | 2 Pairs | Y |
HYL200AH-F660W | 2pcs 100Ah | 6pcs 110W | 1.5kw | 50A | 1pc | 1pc | 60A | 6 sets | 2 Pairs | Y |
HYL300AH-F220W | 3pcs 100Ah | 2pcs 110W | 1.5kw | 30A | 1pc | 1pc | 60A | 2 sets | 3 Pairs | Y |
HYL300AH-F330W | 3pcs 100Ah | 3pcs 110W | 1.5kw | 30A | 1pc | 1pc | 60A | 3 sets | 3 Pairs | Y |
HYL300AH-F440W | 3pcs 100Ah | 4pcs 110W | 1.5kw | 40A | 1pc | 1pc | 60A | 4 sets | 3 Pairs | Y |
HYL300AH-F550W | 3pcs 100Ah | 5pcs 110W | 1.5kw | 40A | 1pc | 1pc | 60A | 5 sets | 3 Pairs | Y |
HYL300AH-F660W | 3pcs 100Ah | 6pcs 110W | 1.5kw | 50A | 1pc | 1pc | 60A | 6 sets | 3 Pairs | Y |
HYL400AH-F440W | 2pcs 200Ah | 4pcs 110W | 3kw | 40A | 1pc | 1pc | 60A | 4 sets | 2 Pairs | Y |
HYL400AH-F550W | 2pcs 200Ah | 5pcs 110W | 3kw | 40A | 1pc | 1pc | 60A | 5 sets | 2 Pairs | Y |
HYL400AH-F660W | 2pcs 200Ah | 6pcs 110W | 3kw | 50A | 1pc | 1pc | 60A | 6 sets | 2 Pairs | Y |
HYL600AH-F660W | 3pcs 200Ah | 6pcs 110W | 3kw | 50A | 1 | 1 | 60A | 6 sets | 3 Pairs | Y |
