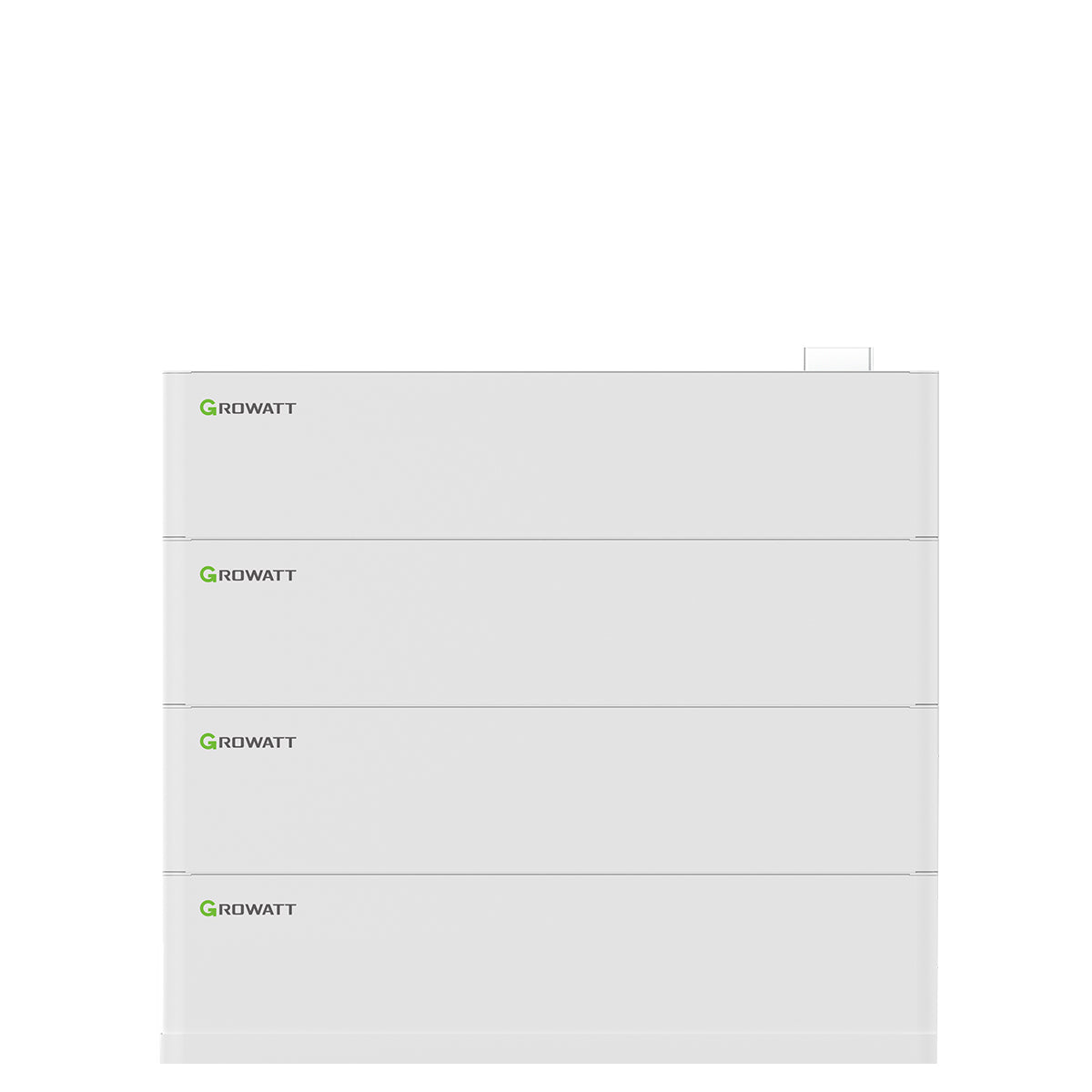

Growatt AXE 5.0L Modular Battery / AXE 5.0L-C1 (5.0kWh, 51.2V, 45kg)

Growatt AXE 5.0L Modular Battery / AXE 5.0L-C1 (5.0kWh, 51.2V, 45kg)

Vendor: Growatt
SKU: AXE 5.0L - C1 (5.0kWh, 51.2V, 45kg)
Availability: Out Of Stock
$0.00
$0.00
Terms & conditions
Description
Description
x
  • Flexible capacity options, 5kWh to 400kWh
  • Excellent safety of cobalt free LiFePO4 battery
  • Stacked installation without cable connection
  • Remote firmware upgrade
Specification
Specification
x
General
Battery TypeCobalt Free Lithium Iron Phosphate (LFP)
Nominal Voltage51.2V

Operating voltage

Range

48 - 57.6V
IP ProtectionIP 20 /NEMA Type1
InstallationFloor installation*2
Operation Temperature0°C-50°C/32-122°F
Features
DoD92%

Mult-cluster AXE battery

system in parallel

Max. 8 clusters ( Max. 400kWh )

BMS Monitoring

Parameters

SOC, System voltage, Current, Cell voltage, Cell temperature, PCBA temperature measurement
Communication PortCAN/RS485
