Quick installation, standard of 19-inch embedded designed module is comfortable for installationand maintenance.
• Safe and reliable
Cathode material is made from LiFeP04 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
• Intelligent BMS
It has protection functions including over-discharge, over-charge, over-cu rent and over-high or low temperature. The systemcan automatically manage charge and discharge state and balance current and voltage of each cell.
The whole module is non-toxic, non-polluting and environmentally friendly.
• Flexible configuration.
Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade,wif upgrade (optional), remote upgrade (Compatible with Deye inverter).
• Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.

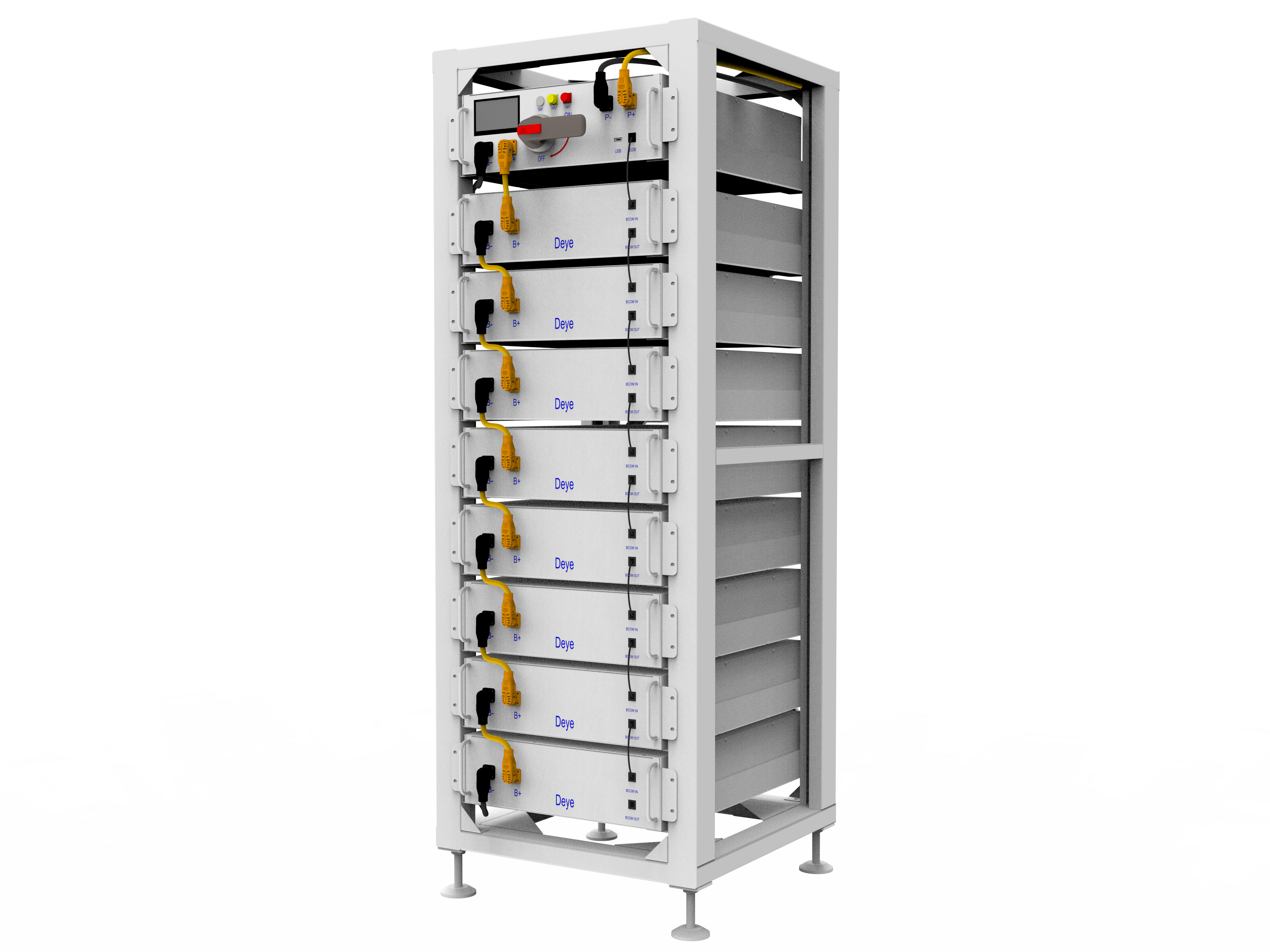

System power range: 20.48--61.44KWh
Maximum size: 540*590*2250mm
Maximum weight: 430kg
Capacity of a single battery pack: 5.12kWh
Recommended depth of discharge: 90%
Certificate: CE, IEC, UL
Battery Type: Lithium Iron Phosphate
