ENPHASE IQ7-60-2-US 235W-350W+ MICROINVERTER

Enphase, IQ 7 Micro Inverter, compatible with 60-cell PV modules (only), 208/240 volt, 250VA Peak Power, MC4 DC connectors, Female AC Connector, IQ7-60-2-US

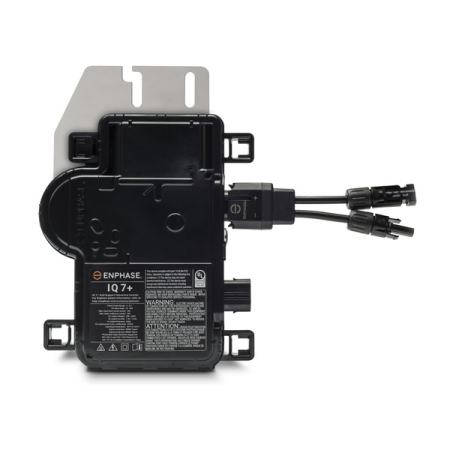

The high-powered smart grid-ready Enphase IQ 7 Micro and Enphase IQ 7+ Micro achieve the highest system efficiency.

Part of the Enphase IQ System, the IQ 7 and IQ 7+ Micro integrate seamlessly with the Enphase Envoy-S, and the Enphase Enlighten monitoring
and analysis software.

The IQ 7 and IQ 7+ Micro extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty.

Features

• Easy to Install - Lightweight and simple. Faster installation with improved, lighter two-wire cabling.


• Productive and Reliable - Optimized for high powered 60-cell modules. More than a million hours of testing. Class II double-insulated enclosure.


• Smart Grid Ready - Complies with advanced grid support, voltage and frequency ride-through requirements. Remotely updates to respond to changing grid requirements. Configurable for varying grid profiles.

• Mechanical Data
  Technology:	Micro-Inverter
  Dimensions:	8.34 x 6.89 x 1.19 Inches
  Weight:	2.38 lbs
  Connector Type:	MC4 (or Amphenol H4 UTX with Additional Q-DCC-5 Adapter)
  Cooling:	Natural convection - No Fans
  Approved for Wet Locations:	Yes
  Pollution Degree:	PD3
  Enclosure:	Class II Double-Insulated
  Environmental Category / UV Exposure Rating:	Outdoor - IP67
  Communication:	Power Line Communication (PLC)
  Monitoring:	Enlighten Manager and MyEnlighten Monitoring Options. Compatible with Enphase IQ Envoy
  Compliance (Pending):	AS 4777.2, RCM, IEC/EN 61000-6-3, IEC/EN 62019-1, IEC/EN 62109-2
  Ambient Temperature Range:	-40°C to +65°C
  Relative Humidity Range:	4% to 100% (Condensing)



  Electrical Data
  Input Data
  Commonly Used Module Pairings:	235W to 350W+
  Module Compatibility:	60-Cell PV Modules
  Maximum Input DC Voltage:	48 Volts
  Peak Power Tracking Voltage:	27V-37 Volts
  Operating Range:	16V-48 Volts
  Min / Max Start Voltage:	22 V / 48 Volts
  Max DC Short Circuit Current (Module Isc):	15 Amps
  Overvoltage Class DC Port:	II
  DC Port Backfeed Under Single Fault:	0 Amps
  PV Array Configuration:	AC Side Protection Requires Max 20A per Branch Circuit
  Output Data (AC)
  Peak Output Power:	250 VA
  Maximum Continuous Output Power:	240 VA
  Nominal Voltage / Range:	230V / 184-276V
  Nominal Output Current:	1.04 Amps
  Nominal Frequency:	50 Hz
  Extended Frequency Range:	45-55 Hz
  Maximum Units per 20 A (L-N) Branch Circuit:	16 (230 VAC)
  Overvoltage Class AC Port:	III
  AC Port Backfeed Current:	0 Amps
  Power Factor Setting:	1.0
  Power Factor (Adjustable):	0.7 Leading ... 0.7 Lagging
  Efficiency:	96.5%
