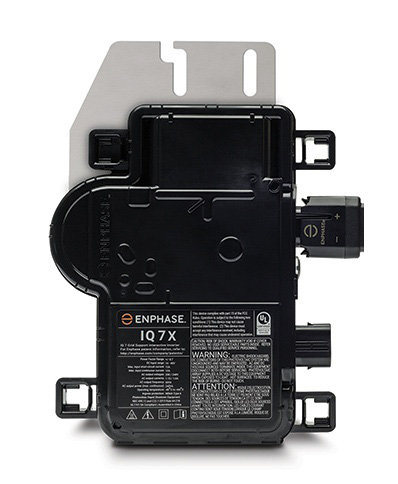

ENPHASE IQ7X-96-2-US 320W-460W+ MICROINVERTER

Enphase, IQ 7X Micro Inverter, compatible with 96-cell PV modules, 208/240 volt, 320VA Peak Power, MC4 DC connectors, Female AC Connector, IQ7X-96-2-US

The high-powered smart grid-ready Enphase IQ 7X Micro dramatically simplifies the installation process while achieving the highest system efficiency for systems with 96-cell modules. Part of the Enphase IQ System, the IQ 7X Micro integrates with the Enphase IQ Envoy, Enphase IQ Battery, and the Enphase Enlighten monitoring and analysis software.

The IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.

Features

• Easy to Install - Lightweight and simple. Faster installation with improved, lighter two-wire cabling. Built-in rapid shutdown compliant (NEC 2014&2017)


• Efficient and Reliable - Optimized for high powered 96-cell modules. Highest CEC efficiency of 97.5%. More than a million hours of testing. Class II double-insulated enclosure. UL listed.


• Smart Grid Ready - Complies with advanced grid support, voltage and frequency ride-through requirements. Remotely updates to respond to changing grid requirements. Configurable for varying grid profiles. Meets CA Rule 21 (UL 1741-SA).

• Mechanical Data
  Technology:	Micro-Inverter
  Dimensions:	8.35 x 6.89 x 1.19 Inches
  Weight:	2.38 lbs
  Connector Type:	MC4 (or Amphenol H4 UTX with Additional Q-DCC-5 Adapter)
  Cooling:	Natural convection - No Fans
  Approved for Wet Locations:	Yes
  Pollution Degree:	PD3
  Enclosure:	Class II Double-Insulated, Corrosion Resistant Polymeric Enclosure
  Environmental Category / UV Exposure Rating:	NEMA Type 6 / Outdoor
  Communication:	Power Line Communication (PLC)
  Monitoring:	Enlighten Manager and MyEnlighten Monitoring Options. Compatible with Enphase IQ Envoy
  Disconnecting Means:	The AC and DC Connectors Have Been Evaluated and Approved by UL for Use as the Load-Break Disconnect Required by NEC 690
  Ambient Temperature Range:	-40°C to +65°C
  Relative Humidity Range:	4% to 100% (Condensing)



  Electrical Data
  Input Data
  Commonly Used Module Pairings:	320W to 460W+
  Module Compatibility:	96-Cell PV Modules
  Maximum Input DC Voltage:	80 Volts
  Peak Power Tracking Voltage:	53V-64 Volts
  Operating Range:	25V-80 Volts
  Min / Max Start Voltage:	30V / 80 Volts
  Max DC Short Circuit Current (Module Isc):	10 Amps
  Overvoltage Class DC Port:	II
  DC Port Backfeed Under Single Fault:	0 Amps
  PV Array Configuration:	1 x 1 Undergrounded Array; No Additional DC Side Protection Required; AC Side Protection Requires Max 20A per Branch Circuit
  Output Data (AC)
  Peak Output Power:	320 VA
  Maximum Continuous Output Power:	315 VA
  Nominal Voltage / Range:	240V / 211-264V
  Nominal Output Current:	1.31 Amps
  Nominal Frequency:	60 Hz
  Extended Frequency Range:	47-68 Hz
  Maximum Units per 20 A (L-N) Branch Circuit:	12 (240 VAC)
  Overvoltage Class AC Port:	III
  AC Port Backfeed Current:	0 Amps
  Power Factor Setting:	1.0
  Power Factor (Adjustable):	0.7 Leading ... 0.7 Lagging
  Efficiency:	97.5%
