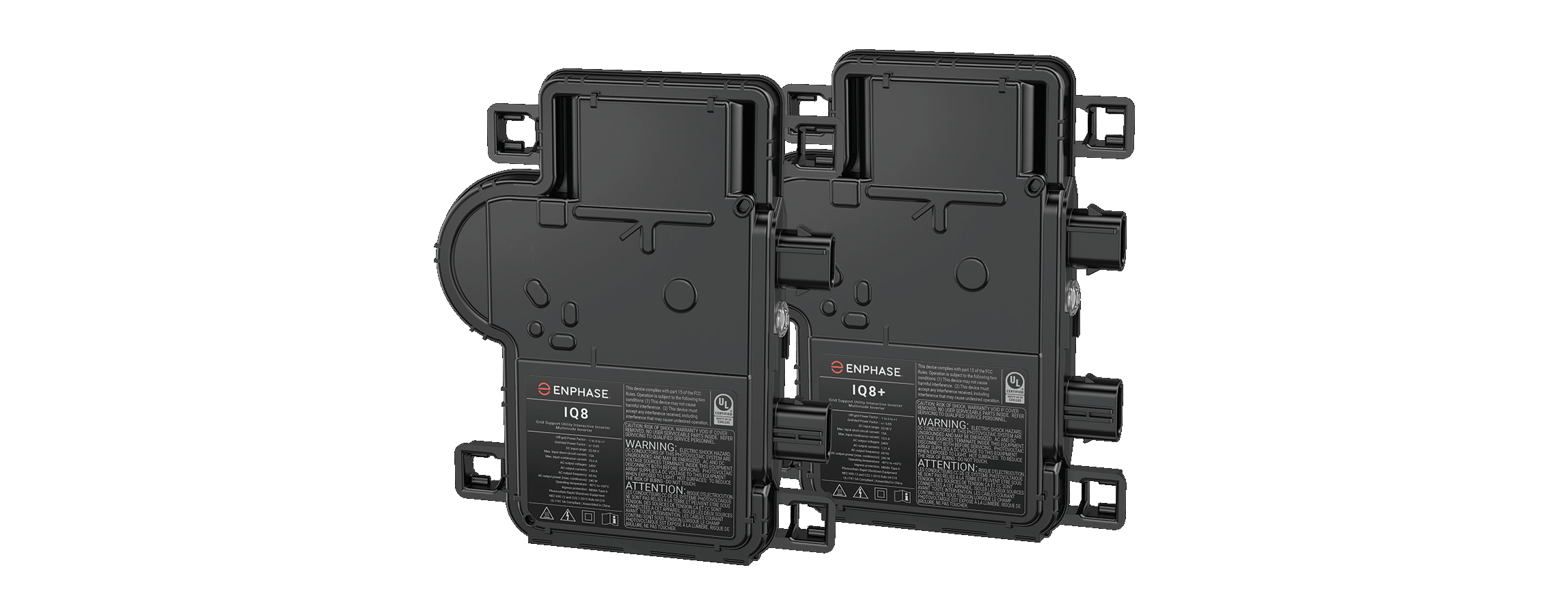

Enphase IQ8 microinverter, compatible with 60 and 72 cell PV modules, 240V, 300VA peak power, Enphase Q Bulkhead Connector, IQ8PLUS-72-2-US
This newest line of IQ microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter is Enphase's proprietary application specific integrated circuit (ASIC); which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high speed digital logic and has super fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Part of the Enphase Energy System, the IQ8 series microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
Easy to Install - Lightweight and compact with plug-n-play connectors. Power Line Communication (PLC) between components. Faster installation with simple two-wire cabling.
Productive and Reliable - Produce power even when the grid is down. More than one million cumulative hours of testing. Class II double-insulated enclosure. Optimized for high-powered PV modules.
Grid Forming - Complies with the latest advanced grid support. Remote automatic updates for the latest grid requirements. Configurable to support a wide range of grid profiles. Meets CA Rule 21 (UL 1741-SA) requirements.
8.3 x 6.9 x 1.2 Inches
Natural convection - No Fans
Approved for Wet Locations:
Class II Double-Insulated, Corrosion Resistant Polymeric Enclosure
Output Data (AC)
Peak Output Power:
Maximum Continuous Output Power:
Nominal Voltage / Range:
240V / 211-264V
Nominal Output Current:
Extended Frequency Range:
Commonly Used Module Pairings:
235W to 440W+
60 Cell/120 Half Cell and 72 Cell/144 Half CellPV Modules
Peak Power Tracking Voltage:
Min / Max Start Voltage:
30V / 58 Volts
Max. Input DC Voltage:
Max DC Short Circuit Current (Module Isc):
Overvoltage Class DC Port:
DC Port Backfeed Under Single Fault:
PV Array Configuration:
1x1 Ungrounded Array; No additional DC side production required; AC side protection requires max 20A per branch circuit
