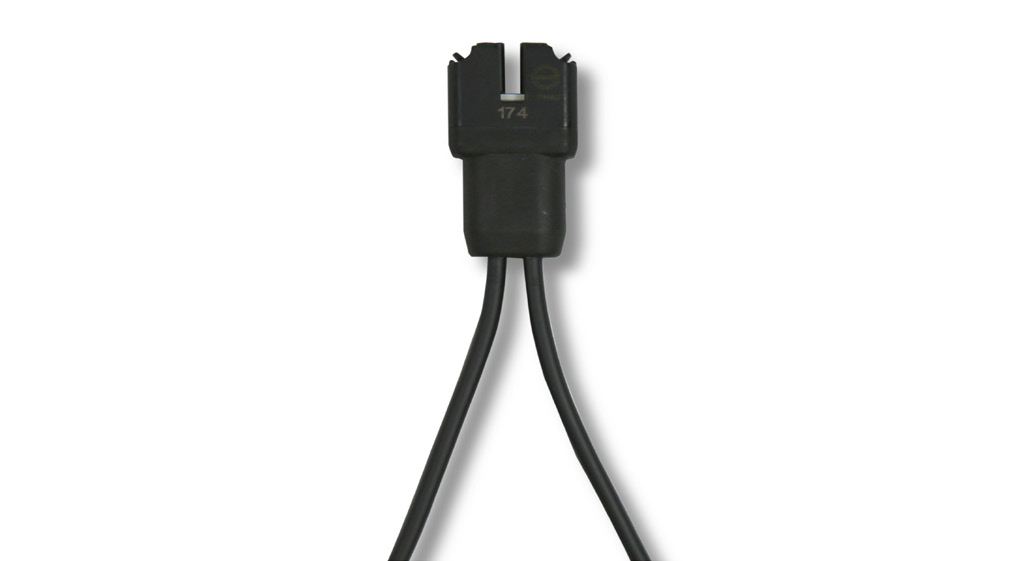

Enphase, IQ, Q-Cable, 240 Volt, for 60 cell 1.7m Landscape module pitch. Connector Pitch is 2.0m (78.7"), Q-12-17-240
The Enphase Q Aggregator and Enphase Q Cable are part of the sixth generation Enphase IQ System. These accessories provide simplicity, reliability, and faster installation times.
The Enphase Q Cable offers a new two-wire cable that is 50% lighter than the previous generations of Enphase Cables, and has only two wires, with no neutral or ground required. These drop cables come with plug and play connectors that speed installation times and simplify wire management. New link connectors eliminate cable waste. The Q cable is specific to portrait 60-cell or 72-cell (Q-12-10-240), landscape 60- cell (Q-12-17-240) or landscape 72-cell (Q-12-20-200) modules. These cables are sold in cut-to order lengths, as well as in full box quantities.
||40.00 x 0.50 x 0.50 inches
|Voltage Rating:||600V (Connector Rating 250V)|
|Cable Temperature Rating:||90°C|
|Certification:||UL3003, DG Cable|
|Flame Test Rating:||FT4|
|Compliance:||RoHS, OIL RES I, CE, UV Resistant, Combined UL for Canada and the United States|
|Cable Insulator Rating:||THHN / THWN-2 Dry / Wet|
|Specifications:||Q Series Accessories Brochure|
