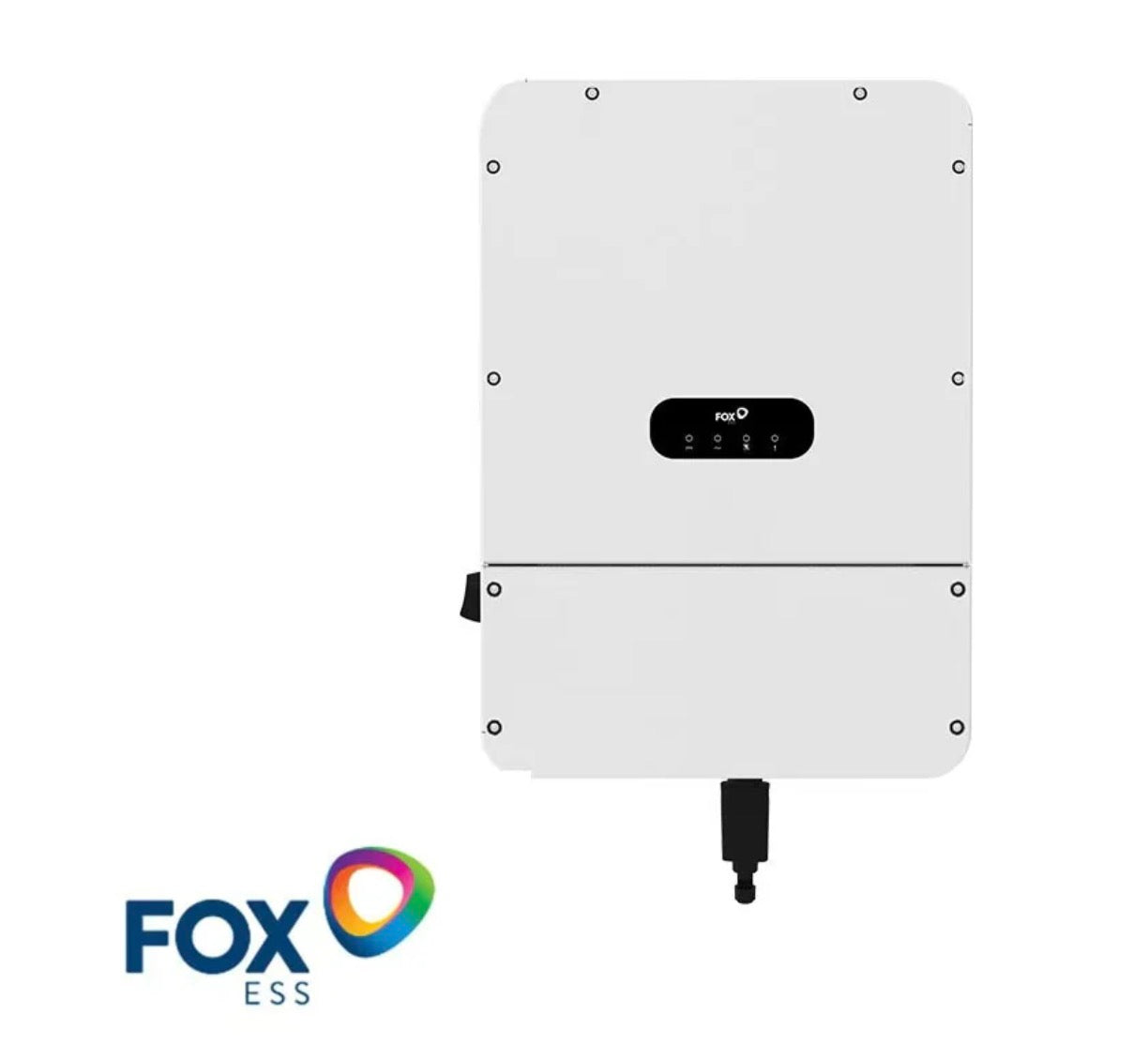

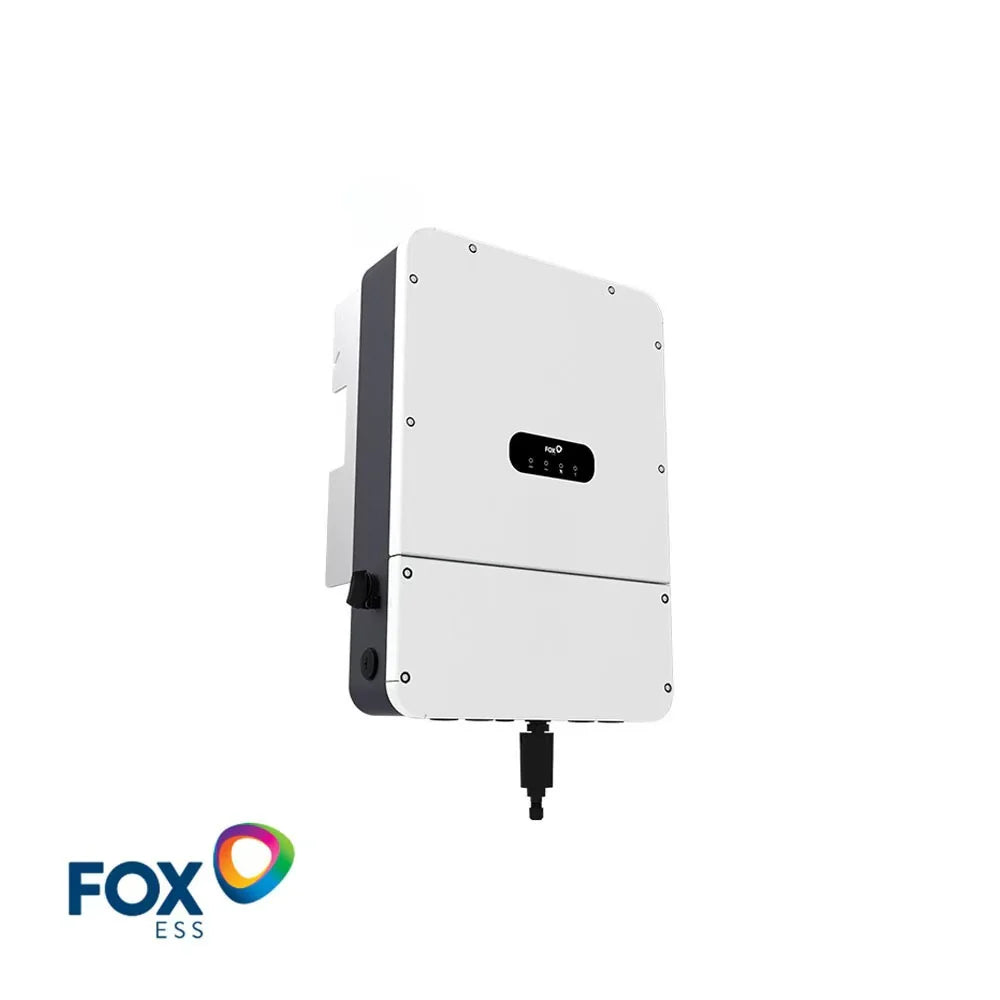

FOX AC1-11.4-US Split-Phase Hybrid Inverter
FOX AC1-11.4-US Split-Phase Hybrid Inverter

FOX AC1-11.4-US Split-Phase Hybrid Inverter

Vendor: FOX ESS
SKU: AC1-11.4-US
Availability: Out Of Stock
$1,590.00
$1,590.00
Terms & conditions
Description
Description
x

The design of the revolutionary single phase storage inverter is tailored to meet the US market. With wide range of power output capacity and up to 4-unit parallel operation, this Fox ESS US product offers a variety of applications to all customers.

  • Simple installation, plug and play setup
  • Grid-Tie/ Off-Grid, battery ready,DC/AC-Couple ALL-IN-ONE
  • High voltage, maximum round-trip efficiency
  • High yield, DC/AC ratio up to 2
    max.efficiency 97.6%
  • NEMA 4X, suitable for outdoor installation
  • WiFi included, APS/TIGO transmitter integrated
  • Compatible with FOX ESS HV Battery and Generator
  • 12.5 years warranty
Specification
Specification
x
AC Inverter Model:AC1-11.4-US
Hybrid Inverter Model:H1-11.4-US
PV INPUT (ONLY FOR HYBRID)
Max. Solar STC Power [W]22800
Max. Input Voltage [V]600
Start-up Input Voltage [V]100
Rated Input Voltage [V]380
MPPT Operating Voltage Range [V]80~550
MPPT Operating Voltage Range [V] (Full Load)305~500
Max. Input Current [A]28 / 14 / 14
Max. Short-circuit Current [A]44 / 22 / 22
No. of Independent MPP Trackers3
No. of Strings per MPP Tracker2 / 1 / 1
BATTERY CONNECTION
Battery TypeLithium Battery (LFP)
Battery Voltage Range [V]85~460
Rated Battery Voltage [V]360
Max. Continuous Charge / Discharge Current [A]50

Max. Continuous Charge / Discharge Power [W]

(for H1)

17100/12540

Max. Continuous Charge / Discharge Power [W]

(for AC1)

11400/12540
Max. Discharge Current (60s) [A]60
BMS Communication InterfaceCAN 2.0
AC INPUT AND OUTPUT (GRID)
Max. AC Input Power [VA]11400
Max. AC Input Current [A]48
Input Voltage Range [V]211~264
Input Frequency Range [Hz]57~63
Rated Output Power [W]11400
Max. Output Apparent Power [VA]11400
Rated Output Current [A]47.5
Max. Output Current [A]47.5
Rated Grid Voltage [V]240 (211~264)
Rated Grid Frequency [Hz]57~63
Power Factor>0.99 (Adjustable from 0.8 leading to 0.8 lagging)
THDi [%]<3 @rated power
GENERAL DATA
Dimensions (W*H*D) [inch]18.2*25.9*9.2 (462*658*234.5mm)
Weight [Ibs]83.8 (38kg)
InstallationWall-mounted
TopologyTransformerless
Cooling MethodNatural convection
Noise Emission [dB]<35
Max. Operating Altitude [ft]9843 (3000 m), derating above 6560 (2000 m)
Operating Temperature Range [°F]-13 ~ +140 (-25°C ~ +60°C), derating above 104 (40°C)
Humidity [%]0 ~ 100 (No Condensation)
Protection DegreeType 4X
Standby consumption [W]<25
Maximum number of Inverters (Parallel)4
Monitoring ModuleWiFi, LAN
CommunicationCAN2.0, RS485, Meter, CT, ISO alarm, SUNSPEC
DisplayLED, App, Website
Warranty [Year]12.5
