Note: This inverter is rated for up to 1000 V open-circuit. Nominal, Operating, and MPP voltages based on 600 V system design. Actual DC system voltage is dependent on PV string-sizing, not inverter input capacity.

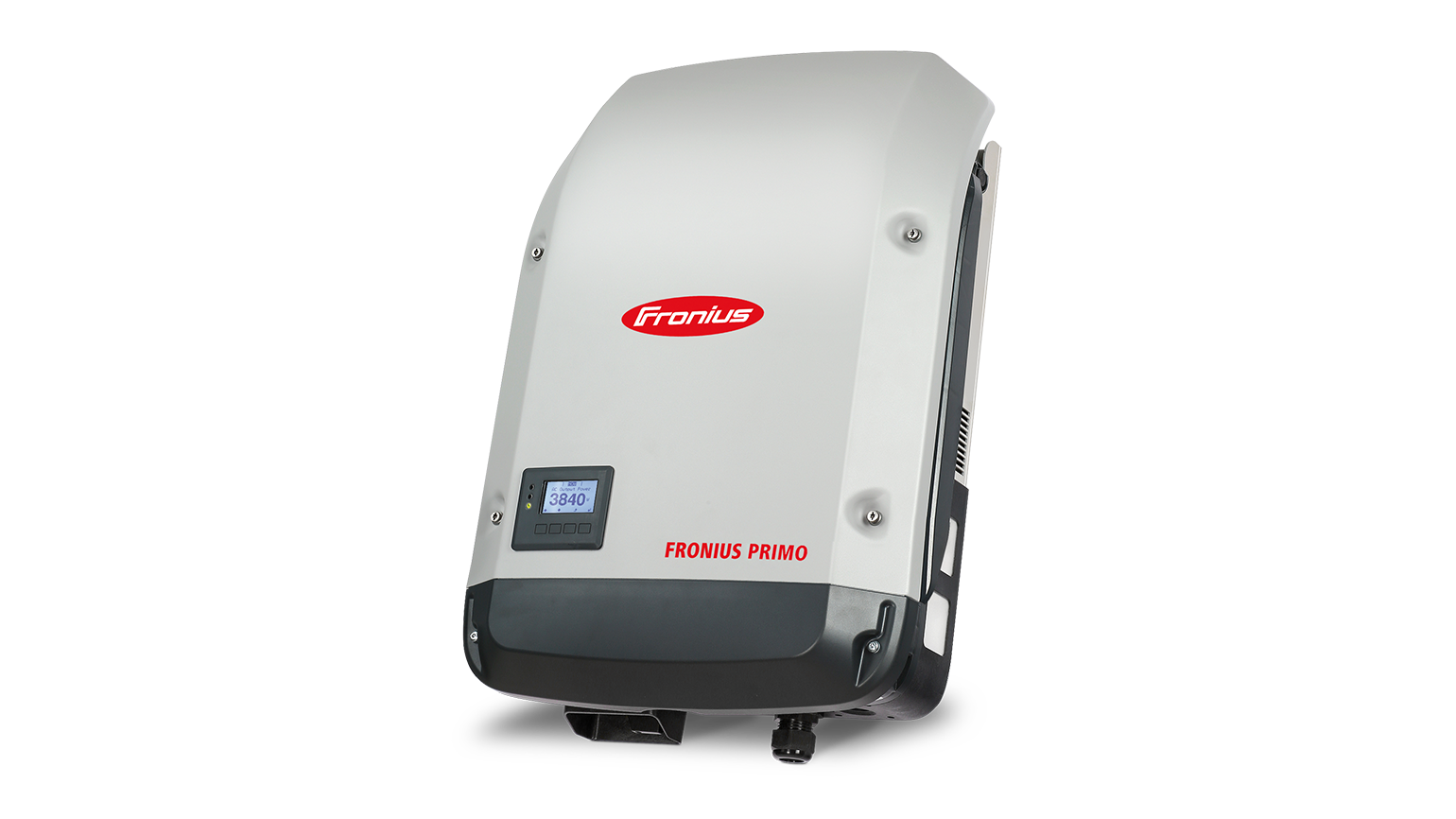

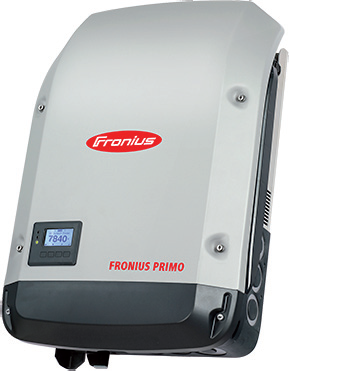

With power categories ranging from 3.8 kW to 15.0 kW, the transformerless Fronius Primo is the ideal compact single-phase inverter for residential applications. The sleek design is equipped with the SnapINverter hinge mounting system which allows for lightweight, secure and convenient installation. The Fronius Primo has several integrated features that set it apart from competitors including dual powerpoint trackers, high system voltage, a wide input voltage range, Wi-Fi and SunSpec Modbus interface, and Fronius’ online and mobile monitoring platform Fronius Solar.web. The Fronius Primo also works seamlessly with the Fronius Rapid Shutdown Box as a reliable rapid shutdown solution outside the PV Array boundary.
Continuous AC Power Output:5000 W
Max Operating Voltage:600 V
Min Operating Voltage:80 V
AC Voltages:208, 240 VAC
AC Frequencies:60 Hz
Recommended PV Input (STC):7800 W
Maximum DC Input Voltage:600 VDC.
Maximum DC Input Current:18 A
Peak Efficiency:97.9 %
CEC Efficiency:96.5 %
Number of MPPT's:2
Max MPPT Voltage:480 V
Min MPPT Voltage:240 V
Positive Input Channels:4
Negative Input Channels:4
Enclosure Ratings:NEMA 4X
Mounting Type:DIN Rail|Rack|Surface Mount
Wifi Interface Option, Field Serviceability, Design Flexibility
