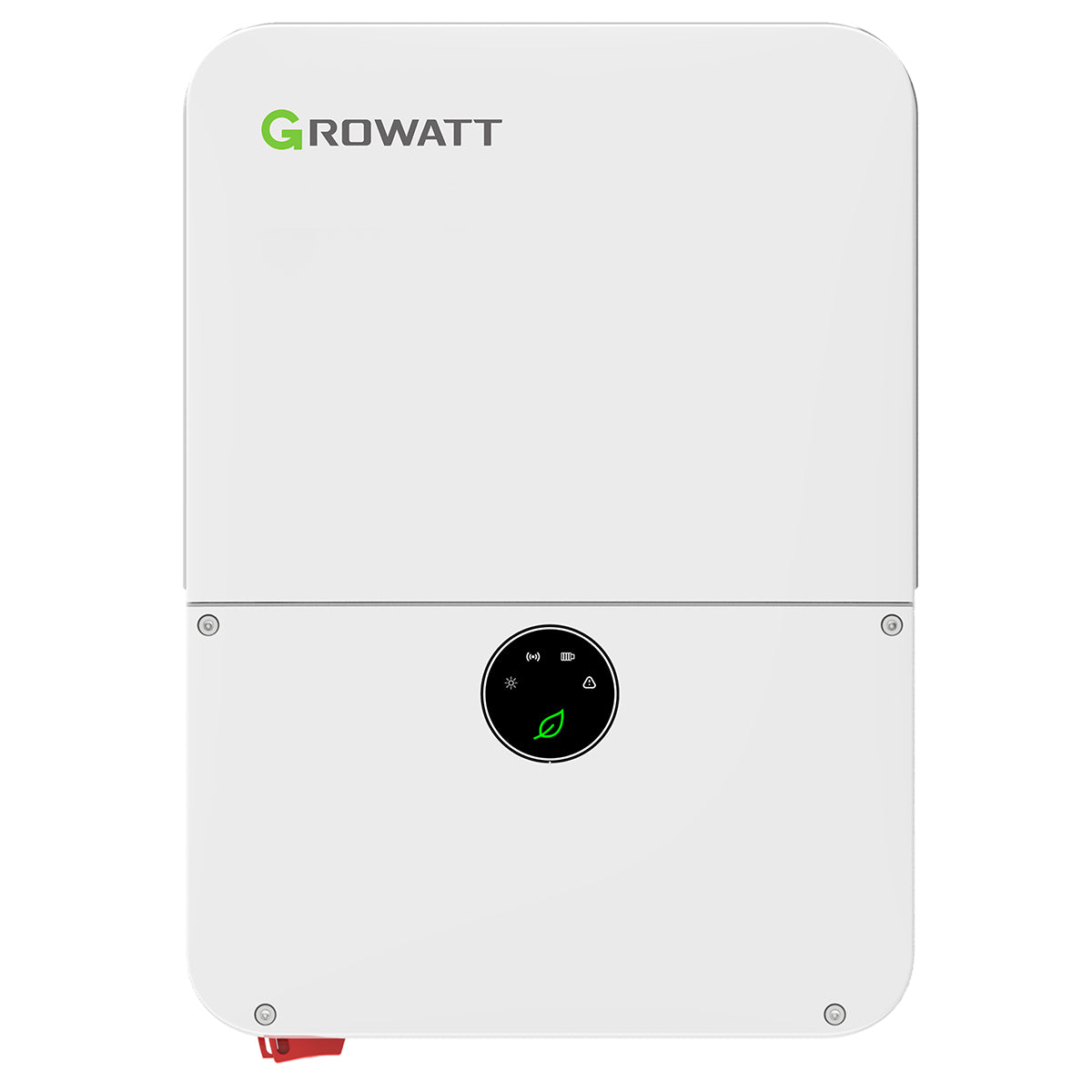

Growatt Battery / MIN 3000~7600TL-XH-US
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Couldn't load pickup availability
Description
x- Battery Ready for DC Coupled and AC Coupled systems
- With backup power and dark start operations
- Support RSD and AFCI
- Support multiple energy management modes: Self-consumption, Zero Export,TOU and Off-grid
- Comply with UL1741SA, CA Rule 21 & HECO
Specification
x| General Data | |
| Dimensions (W / H / D) | 15.75/22.41/6.98 inch (400/569/170.5mm) |
| Weight | 32.3lbs (14.65kg) |
| Operating Temperature Range | –13°F~+140°F (–25 °C ~ +60 °C) de-rating above 113°F |
| Altitude | 9843ft (3000m) |
| Internal Consumption at Night | <1W (for PV inverter)/<5W (for storage inverter) |
| Cooling | Natural Convection |
| Electronics Protection Degree | NEMA4X (IP65) |
| Relative Humidity | 0~95% |
