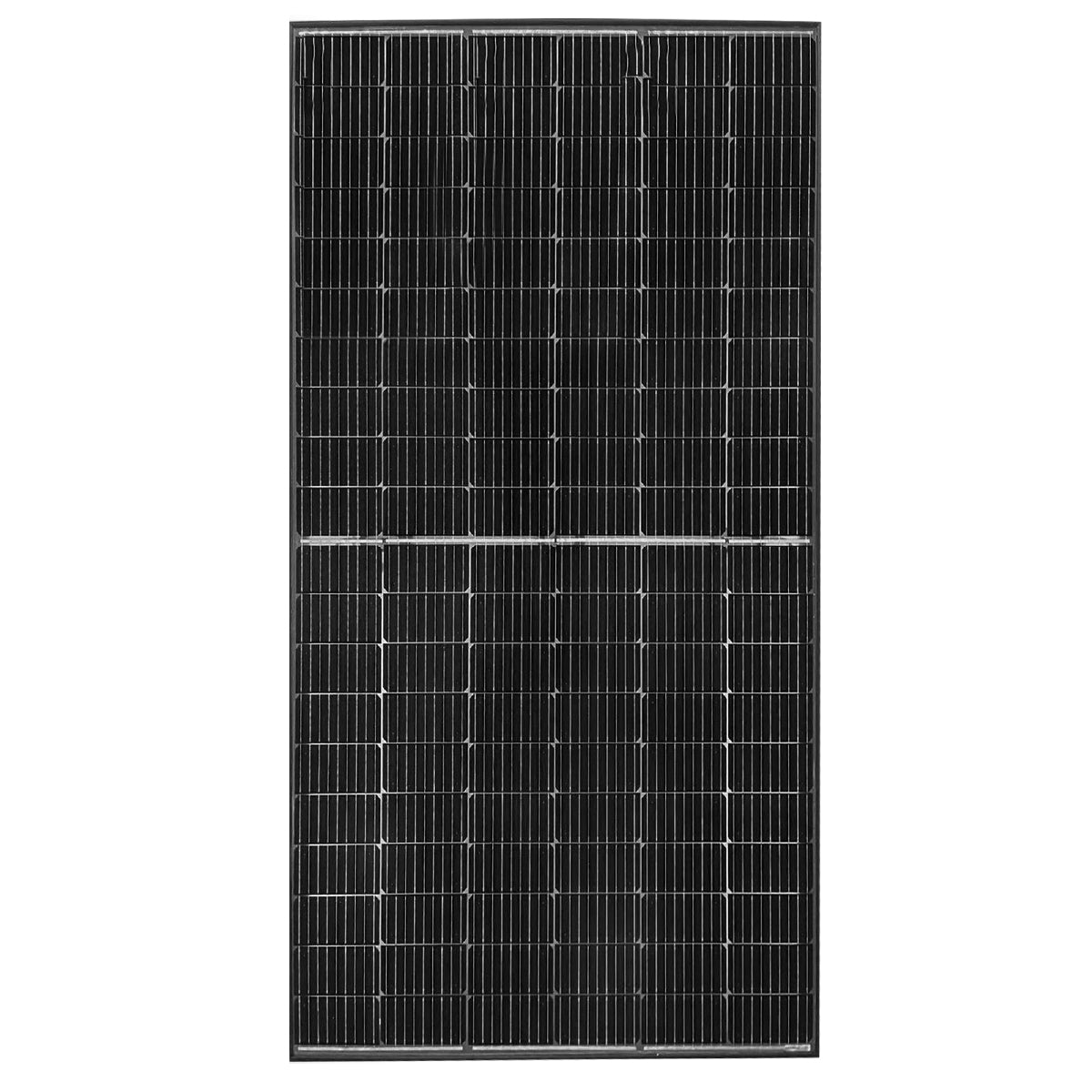

HT Solar Panel 380W FE60-166M Transparent
- Regular price
- $0.00
- Regular price
-
- Sale price
- $0.00
- Unit price
- per
Couldn't load pickup availability
Description
xHigh Efficiency Low LID Bifacial PERC with Half-cut Technology
- 9BB The optimized number and width of main gate lines, Maximize the light receiving area of components and Reduce component power consumption
- 12Ys Products Warranty
-
30Ys Warranty on power output
- All the modules are sorted and packaged by amperage, reducing mismatch losses and maximizing system output.
- Entire module certified to with stand extreme wind (2400 Pa)and snow loads (5400Pa)
Specification
x| Electrical Characteristics (STC) | |
| Module Type | FE60-166M |
| Maximum Power(Pmax) | 380W |
| Open Circuit Voltage(Voc) | 41.7V |
| Short Circuit Current(Isc） | 11.98A |
| Maximum Power Voltage(Vmp) | 34.3V |
| Maximum Power Current(Imp) | 11.09A |
| Module Efficiency(%) | 20.9% |
| Power Tolerance | 0～ +5W |
| Maximum System Voltage | 1500V DC(IEC) |
| Maximum Series Fuse Rating | 20A |
| Operating Temperature | -40℃ TO +85℃ |
