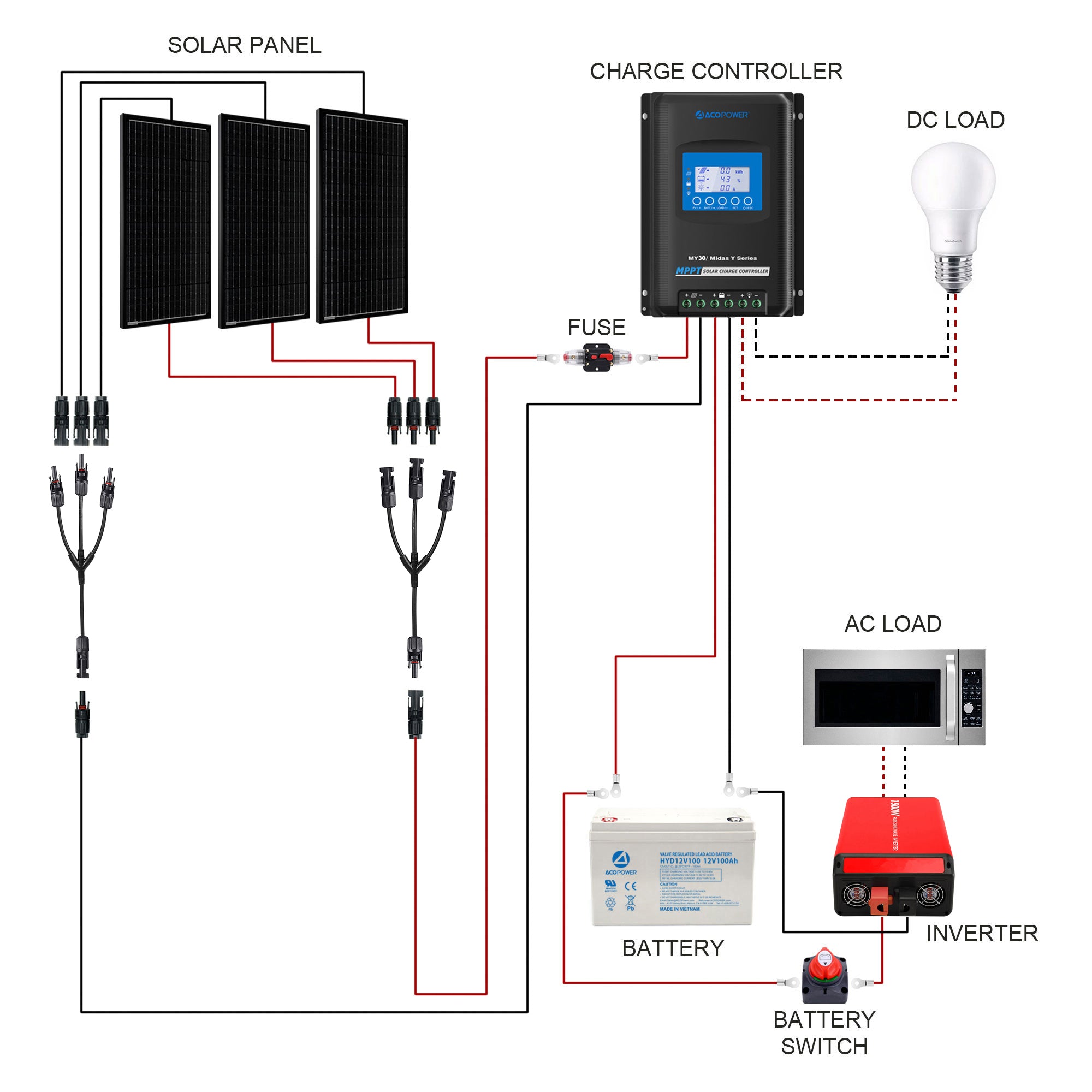

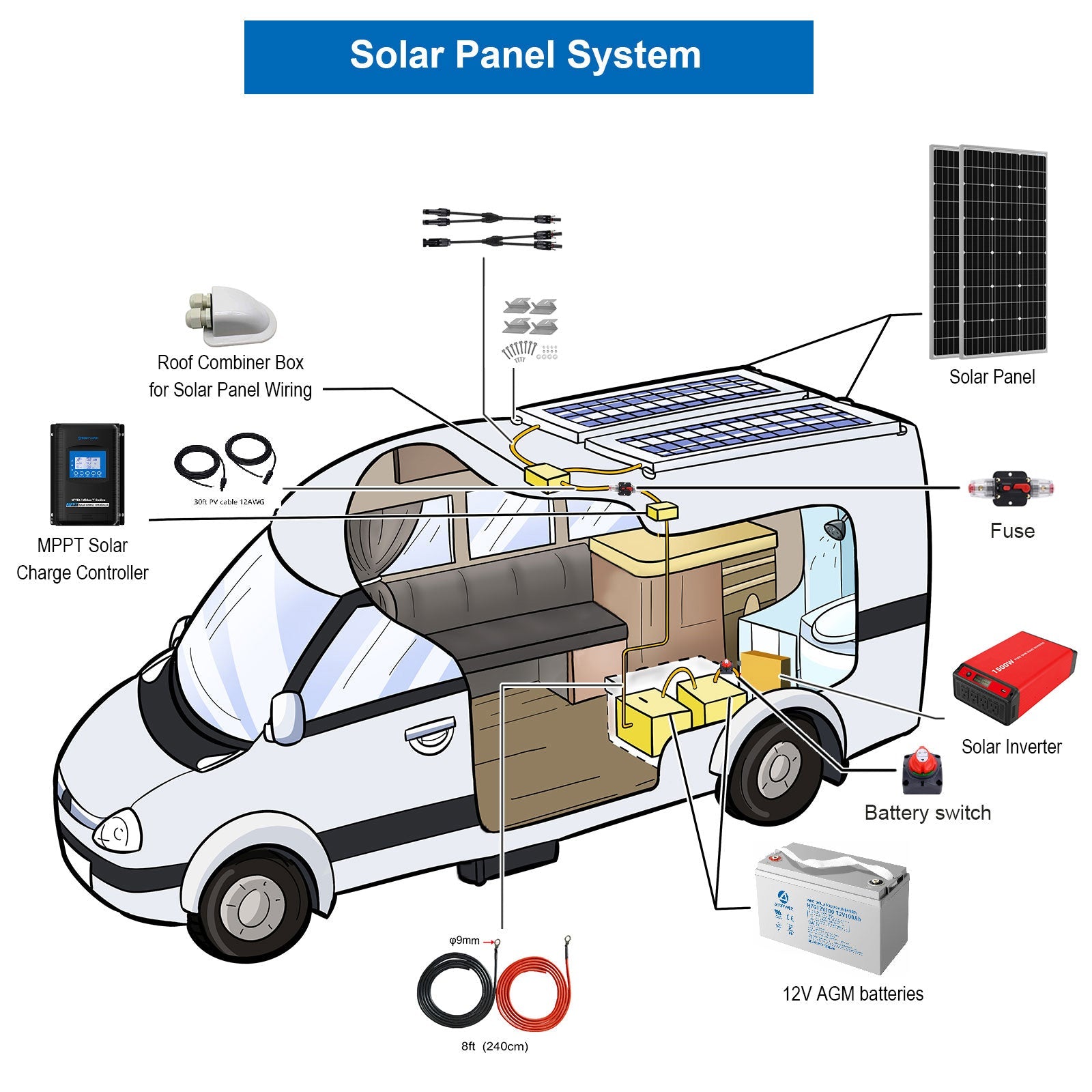

ACOPOWER 300 Watt Mono RV solar system comes with everything you need to start producing free, clean power from the sun! Perfect for RV's, boats, cabins and back-up power! ACOPOWER’s 300 Watt Solar Kit with Inverter includes EVERYTHING you need to get started: 3pcs 100 Watt Monocrystalline Solar Panels, 1500W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 2pcs 100Ah Gel Deep Cycle Battery, 30-Amp MPPT Solar Charge Controller, a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets; Product photos above show pictures of all the included items and additional technical information.
Specification:
100W Monocrystalline Solar Panel
• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8 lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

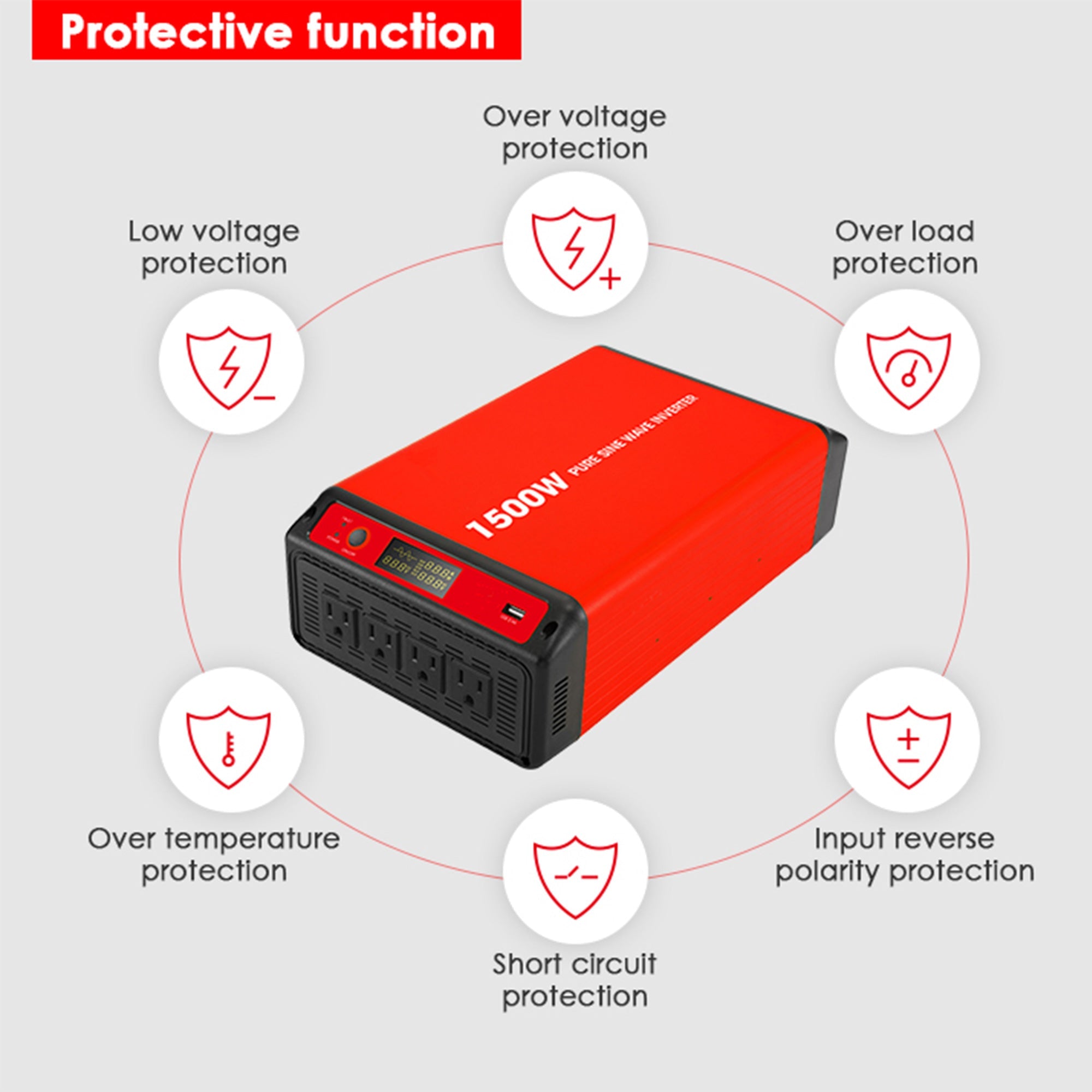

1500W Inverter 12VDC to 120VAC
• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 7.79lb
• dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

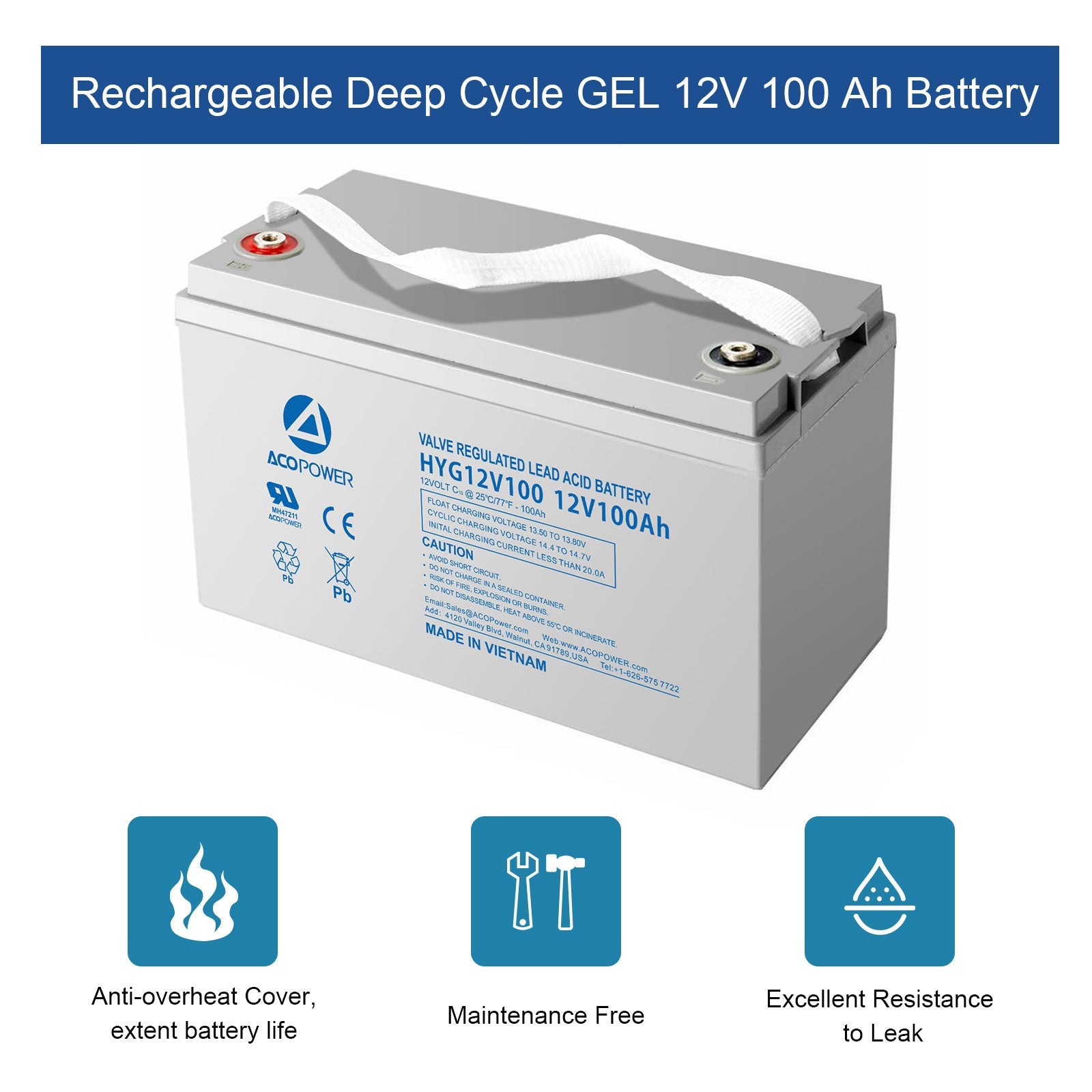

12V 100 Ah Rechargeable Deep Cycle GEL Battery
• Nominal Voltage 12V
• Rated capacity (10 hour rate): 100Ah
• dimension(inch):12.99 x 6.73 (W) x 8.43 (H) inch; Total Height: 8.66inch
• Approx. Weight: 30.5kg(67.2lbs)±3%

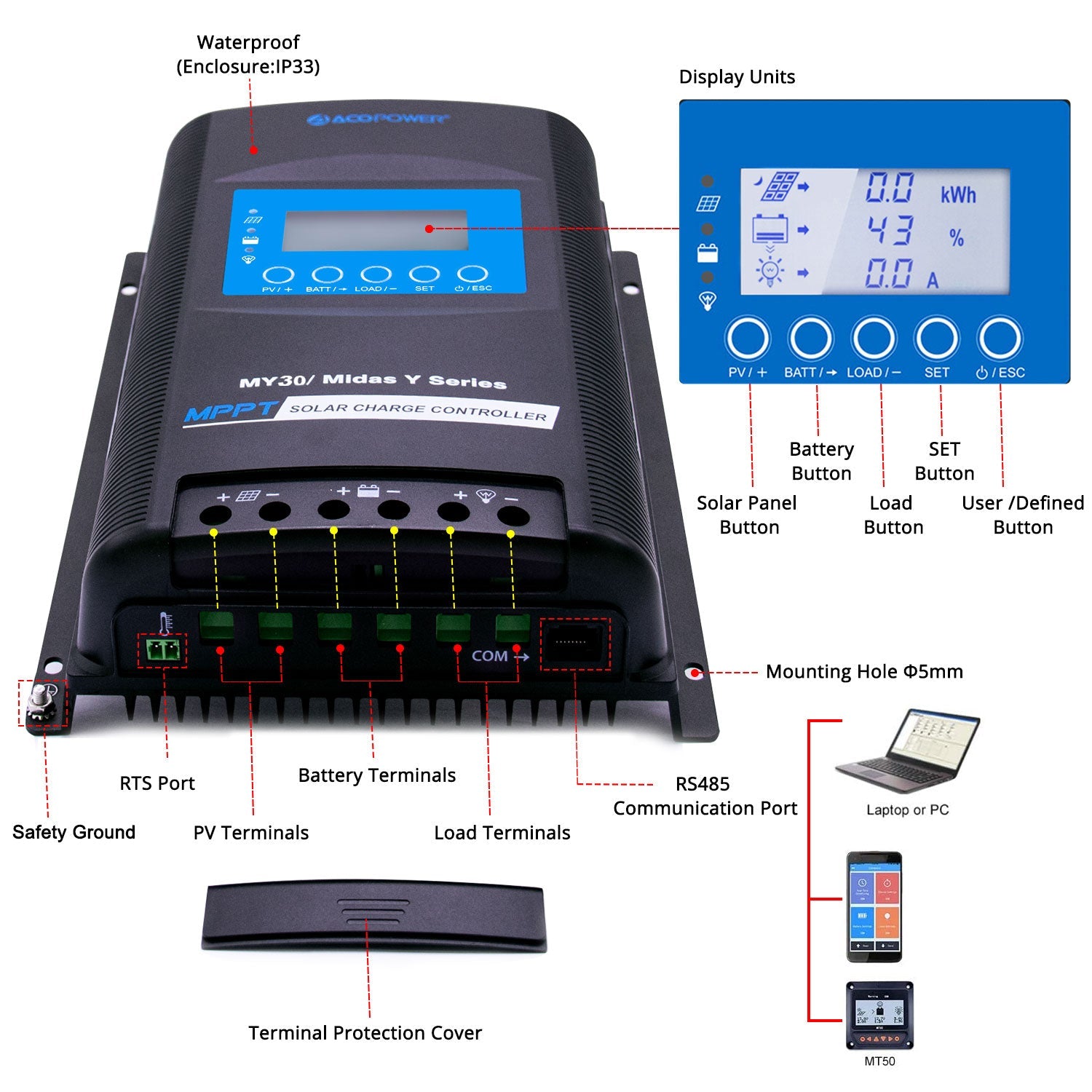

MPPT 30A Charge Controller
• Rated charge current: 30A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

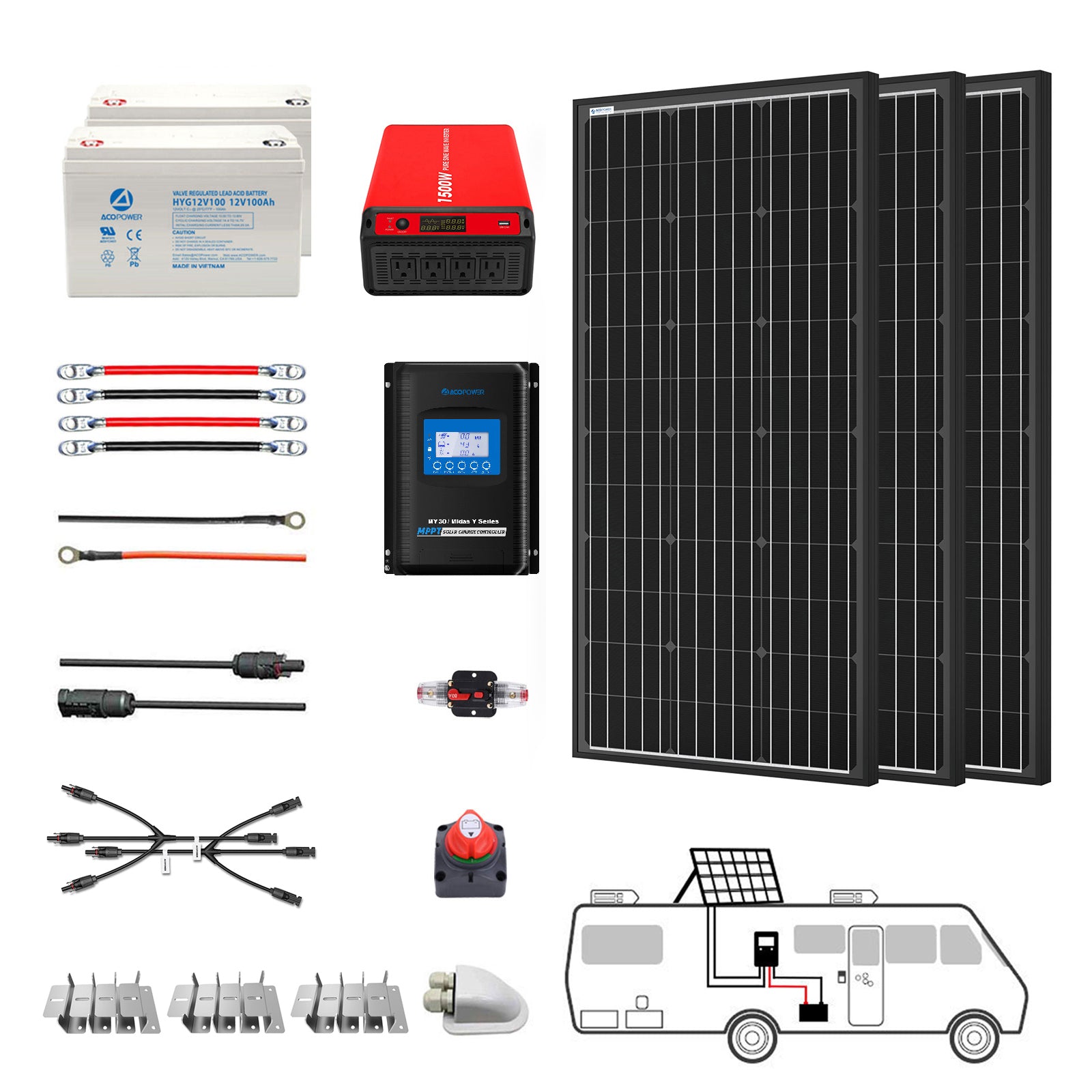

Package List:
• 3PCS 100W Mono Solar Panel
• 1PC 1500W Inverter
• 2PC 100Ah Gel Battery
• 1PC 30A MPPT Charge Controller
• 1PC 50A Fuse
• 1PC Battery Switch
• 3 Sets Mounting Z Bracket
• 1Pair 30ft 12AWG PV Cable
• 2 Pair 1Ft 4AWG Battery Cable
• 1 Pair 8FT 8AWG Tray Cable
• 1PC Cable Entry Housing
• 1 Pairs 1y3 branch solar panel connectors
