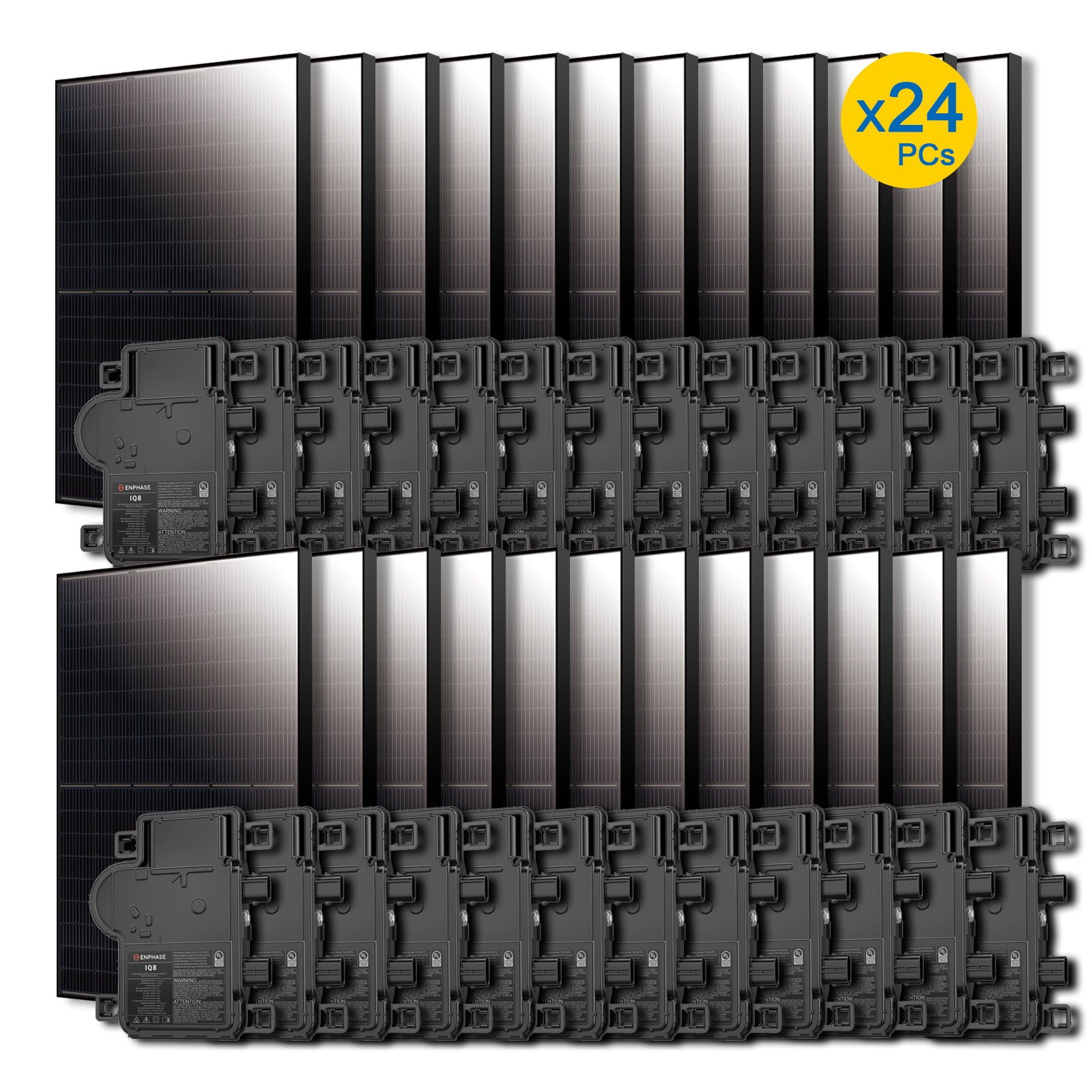

Complete Solar Grid-Tie Solar Kit, 400W All Black Panels Tier 1 + Grid-Tie Inverter

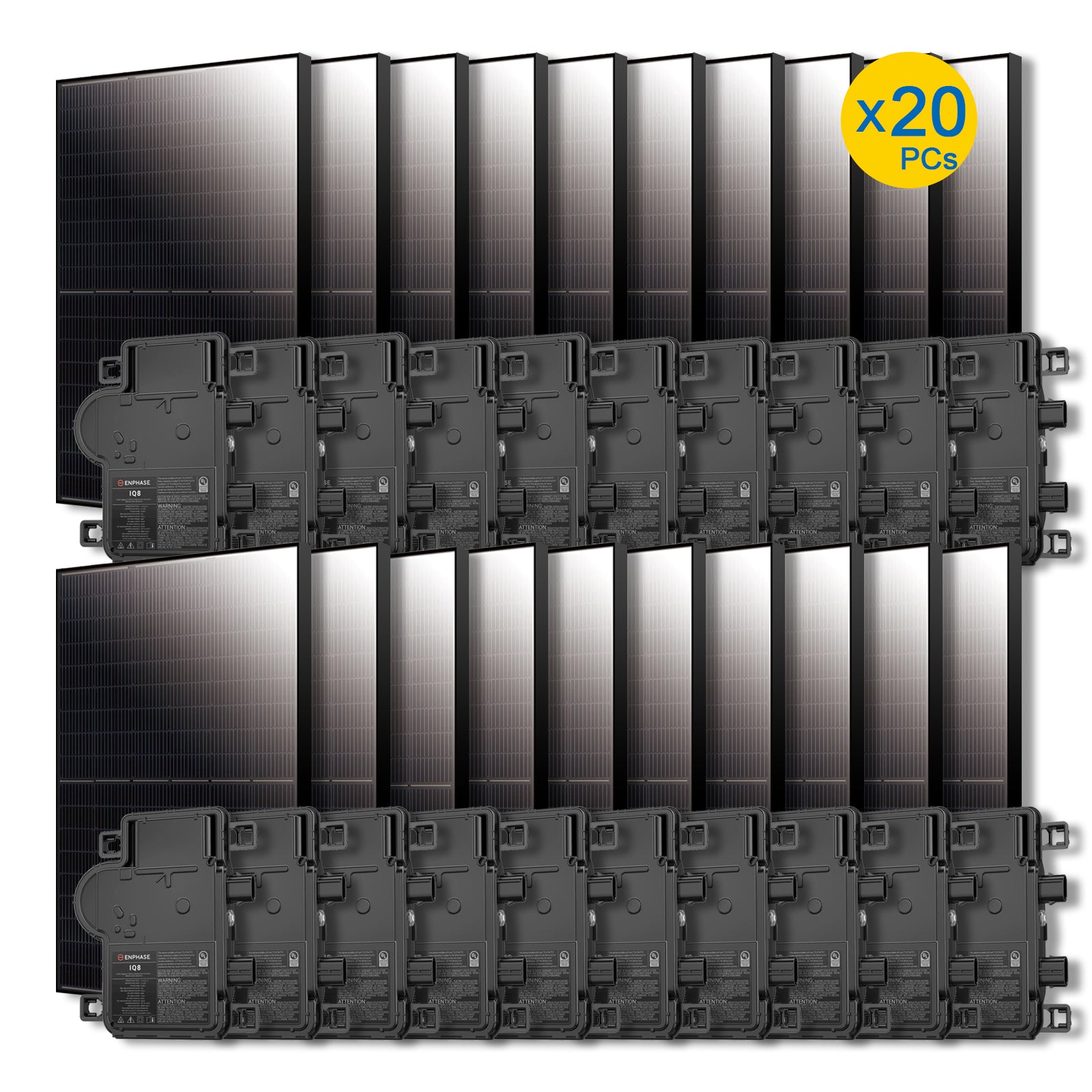

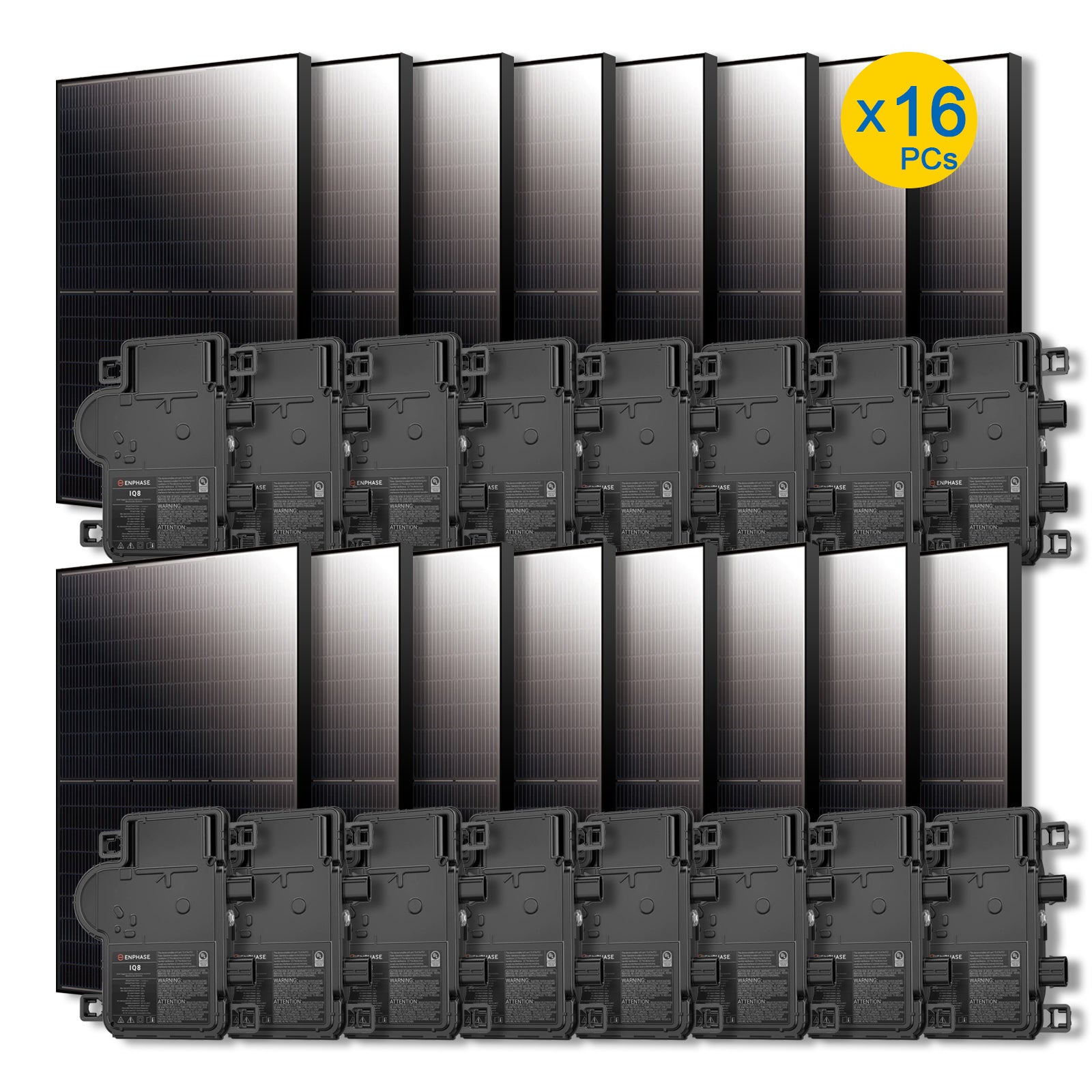

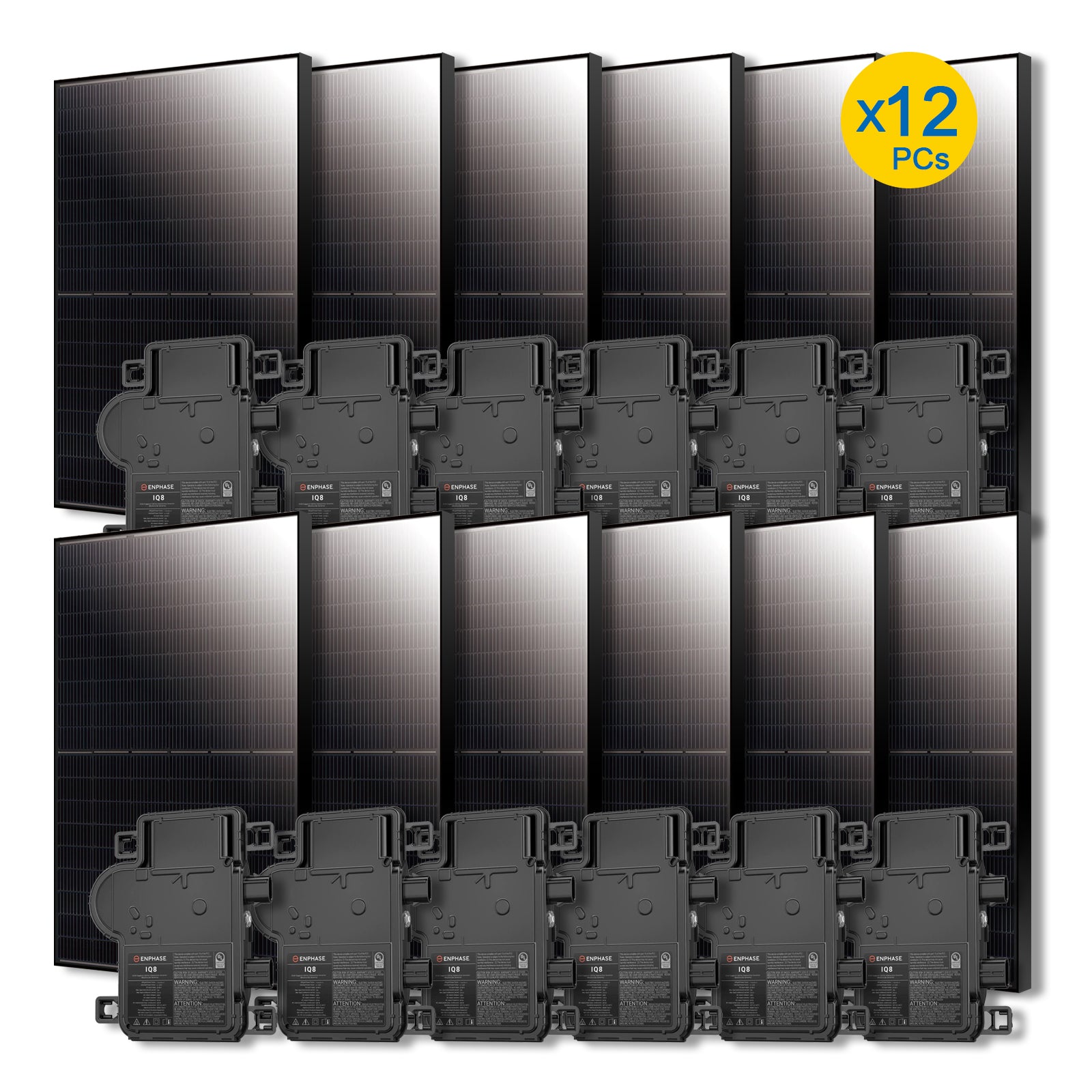

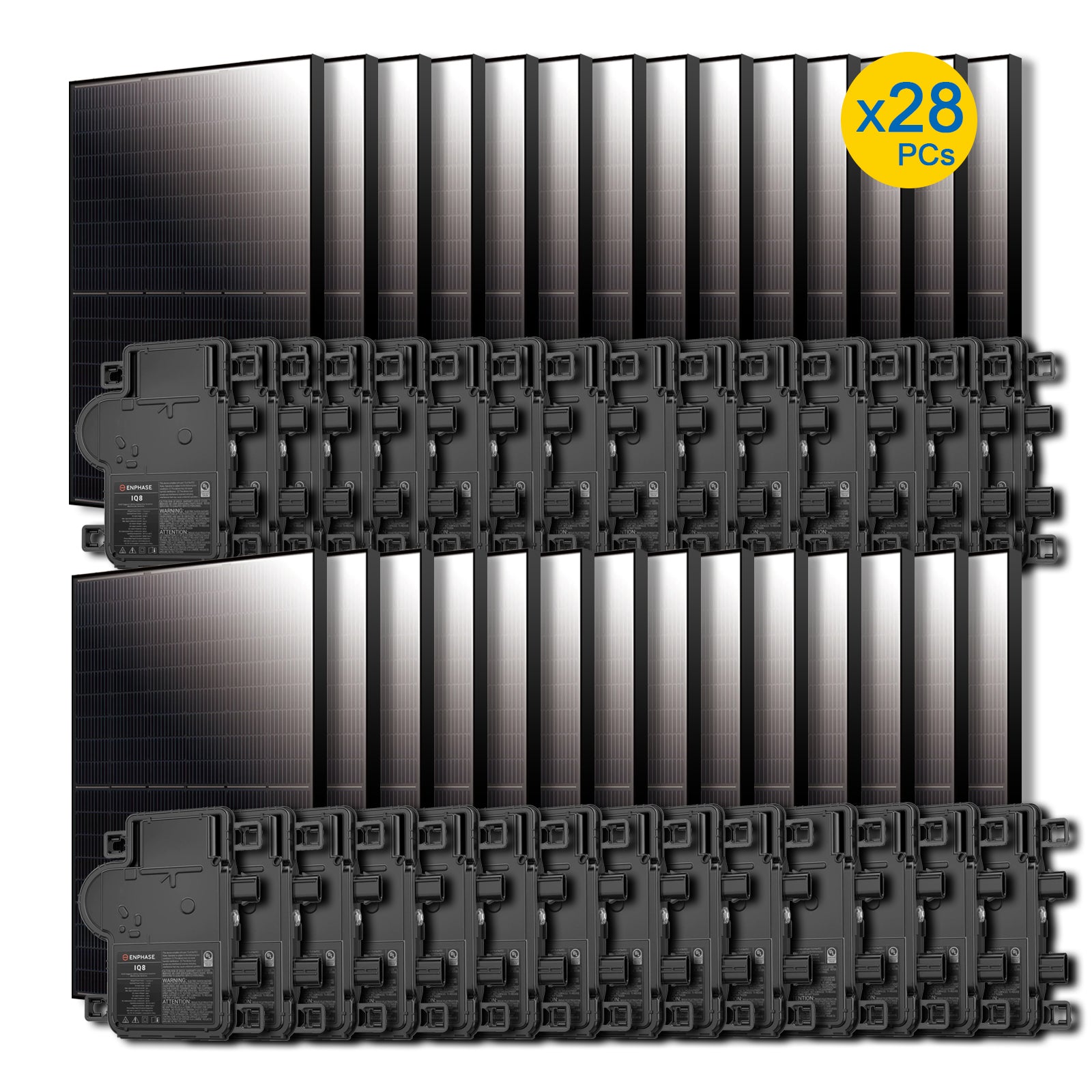

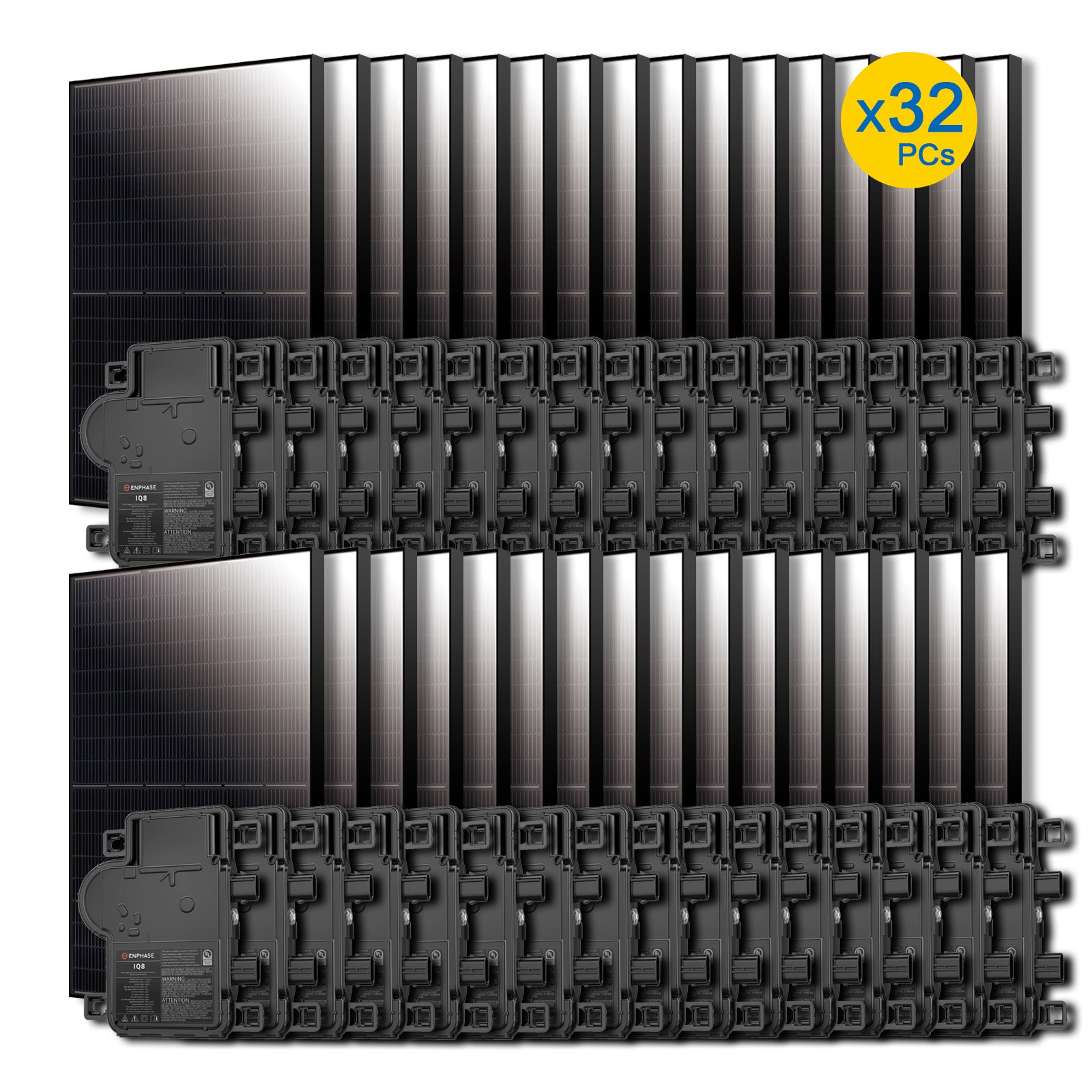

Enphase IQ8+ Microinveter

This Complete Microinverter Solar Grid Tie Kit 4.8~14.8KW,Including all the Hardware of the Whole System  is a great mid range power option. The 400W Solar Panels will fit nicely on almost any Roof and the Power they Produce will be Enough to Off set a Large Portion of your Electricity Usage Each Month. From Lighting, Television and Kitchen Appliance uses to More. Easily Expandable in the Future as Well if You Ever Want to add more Solar Panels.

What's Included With Your:

• 400W Tier-1 Monocrystalline Solar PanelsBlack - 25-Year Power Output Warranty
• MicroinvertersEnphase IQ8-10-Year Warranty
• IQ8+ Microinverter
• Mounting bracket
• Q-DCC-2 plug-n-play MC4 adapter cable

 Why Enphase IQ8 Microinverters?

The newest IQ8 Microinverters are the industry’s first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.

• The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
• Part of the Enphase Energy System, IQ8 Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
• IQ8 Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
• Connect PV modules quickly and easily to IQ8 Microinverters using the included Q-DCC-2 adapter cable with plug-n-play MC4 connectors.
• IQ8 Microinverters are UL Listed as PV Rapid Shutdown equipment and conform with various regulations, when installed according to manufacturer’s instructions.
• To purchase this product, please contact your local authorized Enphase distributor.

 IQ8 Microinverter Technical Specifications:

Peak output power: 300 VA

Input power: 235 - 440 W

Maximum continuous output power: 240 VA

Operating range: 16 – 58 V

Length212.00 mm

Width175.00 mm

Height30.20 mm

Weight1.1 kg

Solar Panel Specs:

• Rated Power Output [W]: 400
• Length [mm (in)]: 2031 mm (79.96 in)
• Width [mm (in)]: 1011 mm (39.8 in)
• Depth [mm (in)]: 30 mm (1.18 in)
• Weight [kg (lb)]: 26.8kg (59.08lbs)
• Warranty [Years]: 12

Solar Panel / Module Characteristics:

• Tier Level: Tier 1
• Pmax - Maximum Power (STC) [W]: 40-41
• Voc - Open Circuit Voltage (STC) [V]: 48-49
• Isc - Short Circuit Current (STC) [A]: 10.33
• Vmpp-Voltage at Maximum Power (STC) [V]: 40.8
• Impp-Current at Maximum Power (STC) [A]: 9.81
• Module Efficiency (STC) [%]: 19.5-20
• Pmax - Maximum Power (NOCT) [W]: 298-300
• Voc - Open Circuit Voltage (NOCT) [V]: 46.1-47
• Isc - Short Circuit Current (NOCT) [A]: 8.35
• Impp-Current at Maximum Power (NOCT) [A]: 7.72
• Vmpp-Voltage at Maximum Power (NOCT) [V]: 38.6
• Nominal Operating Cell Temperature (NOCT): 43±2°C
• Maximum System Voltage [V]: 1500V/DC(IEC)

Solar Panel / Module Specs:

• Frame Color: Anodized aluminium alloy
• Back Cover: Glass on Glass
• Frame size [mm]: 30
• Module Length [in]: 79-80
• Module Width [in]: 39-40
• Junction Box: IP68
• Output Cables: 1200mm
• Connector: Standard PV connectors
• Fire Safety Classification (IEC 61730): Class II
• Static Load Wind / Snow [Pa]: 2400Pa / 5400Pa
• Operating Temperature: -40°C ~ +85°C
• Temperature Coefficients of P [%/°C]: -0.26%/°C
• Temperature Coefficients of I (Isc): +0.043%/°C
• Warranty - 25-30 Year Power Output Warranty

  Key Features
• Collects individual module and microinverter statistics
• Communicates in real time
• IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.

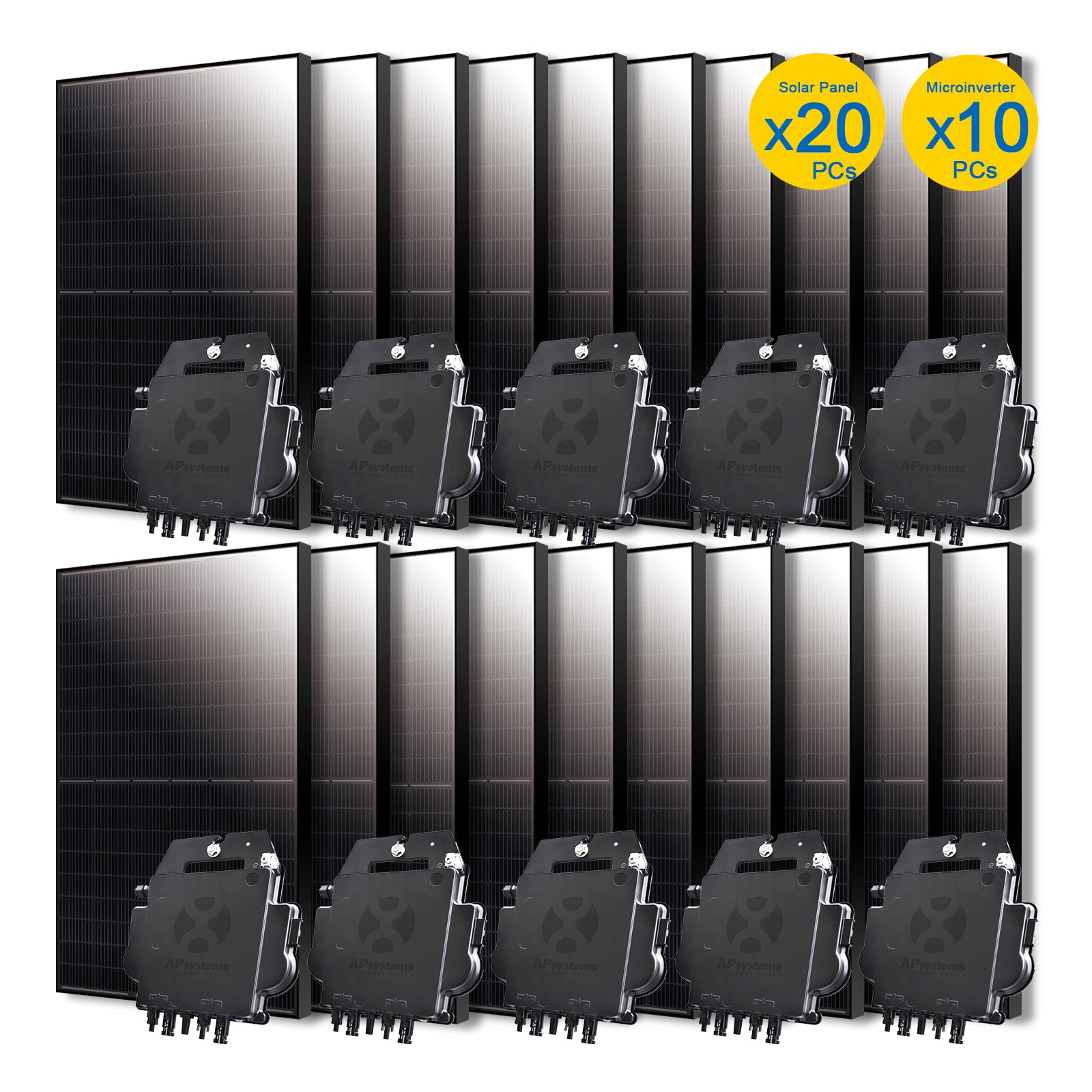

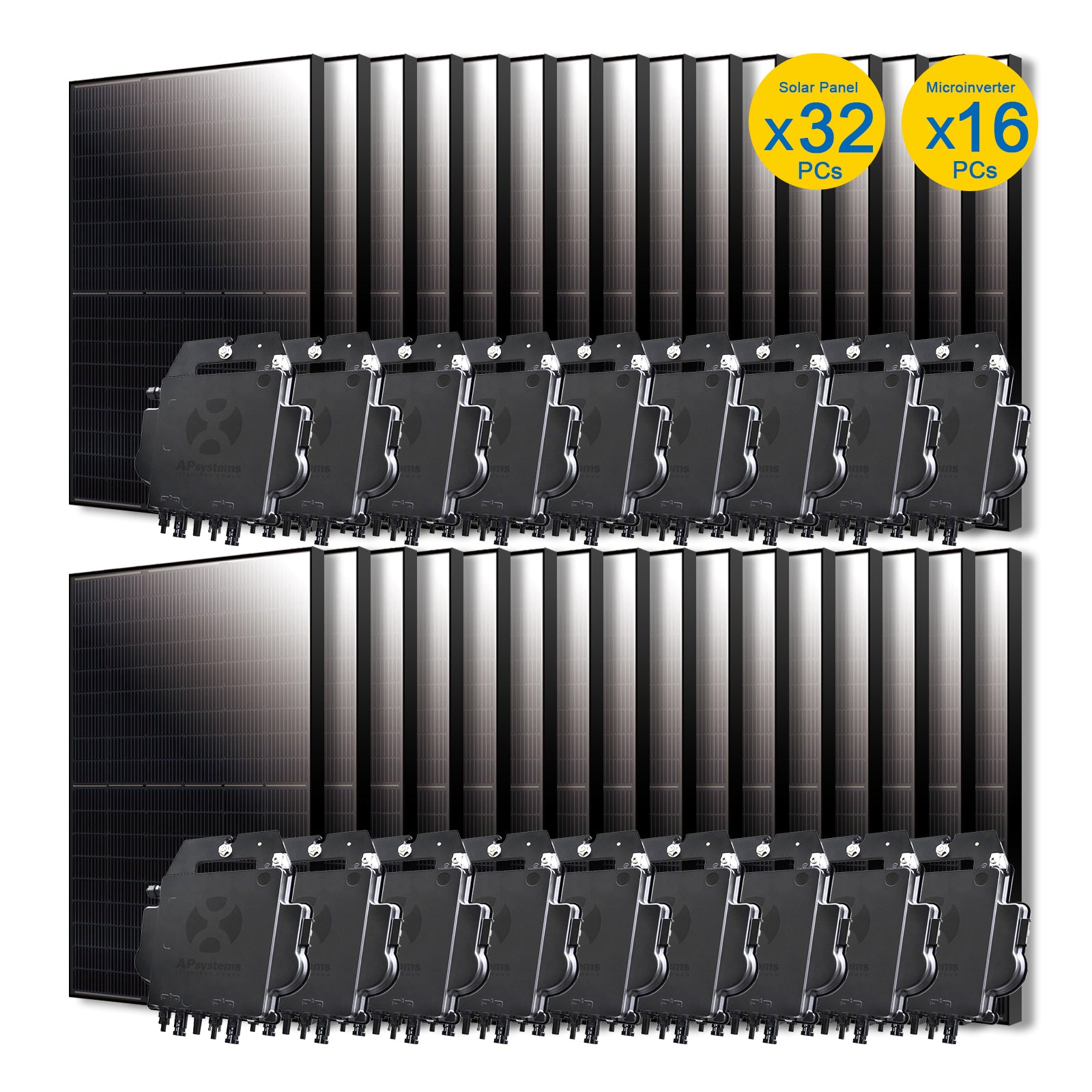

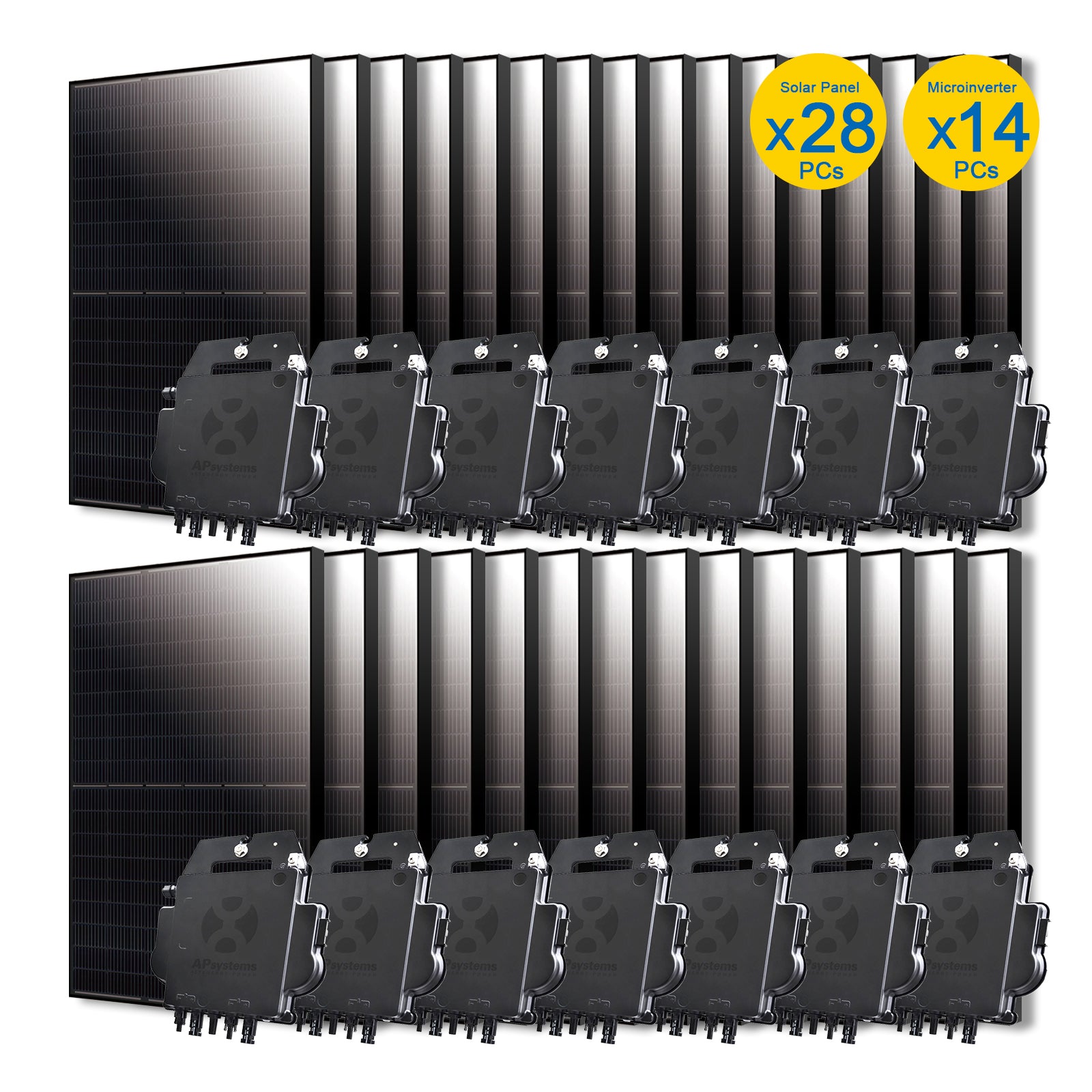

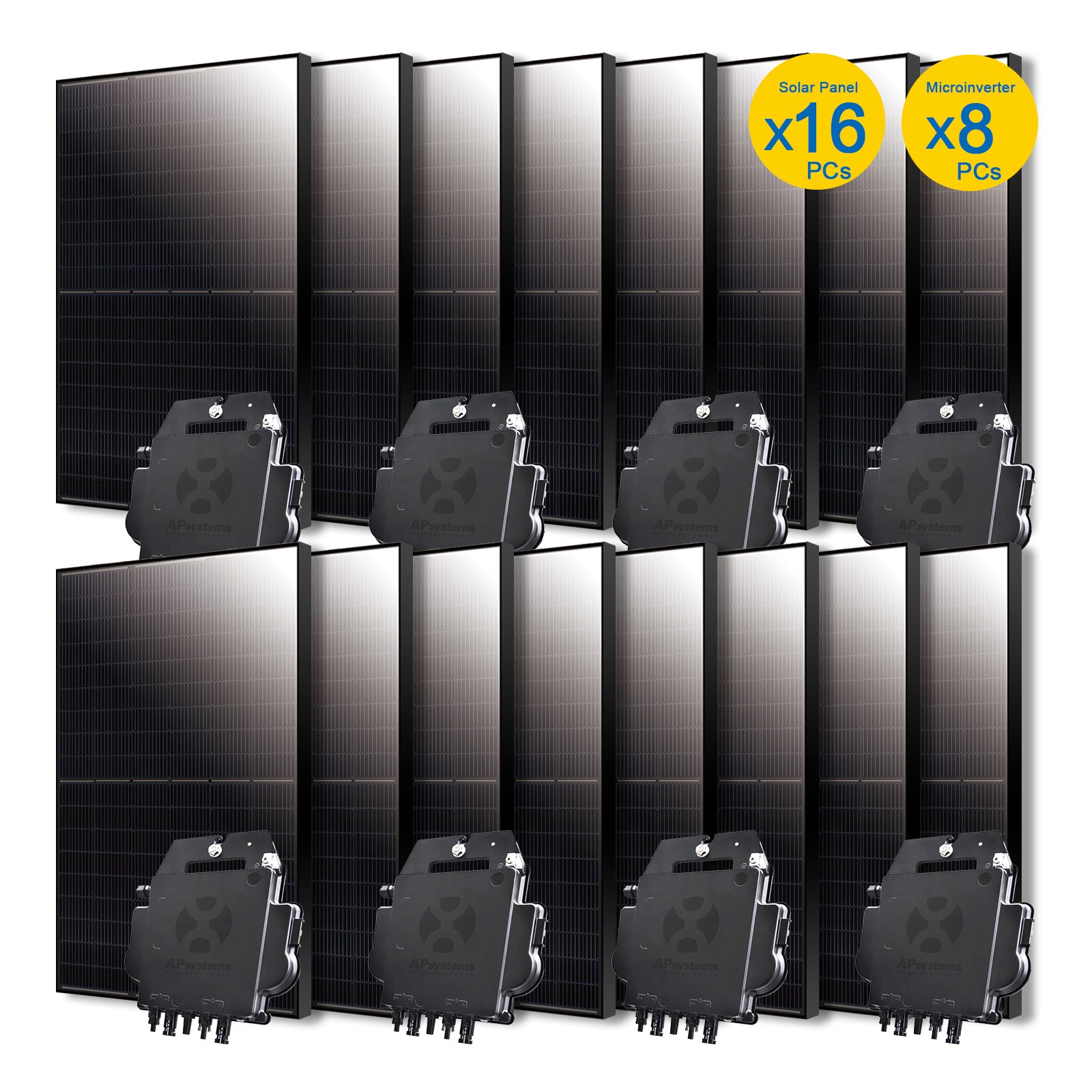

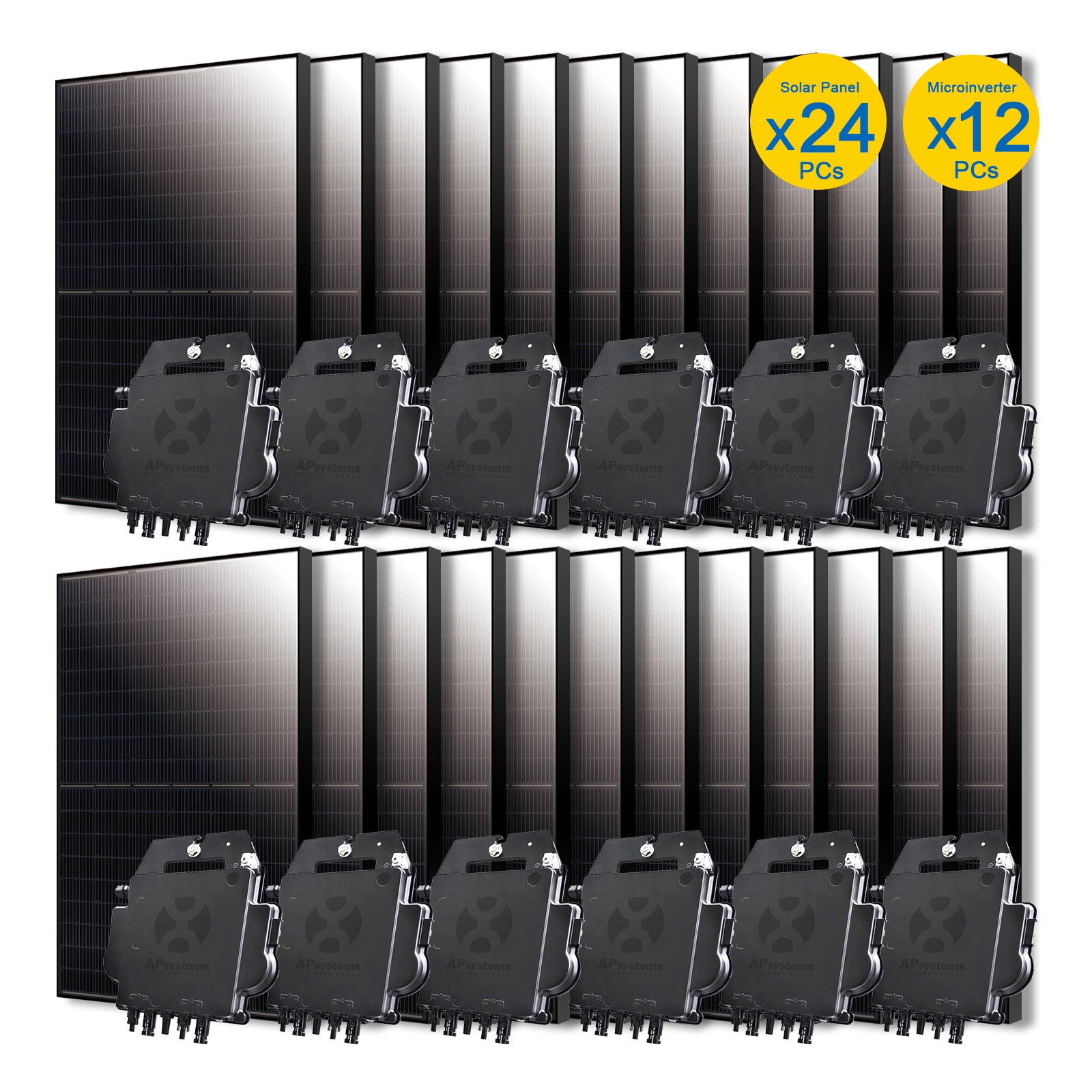

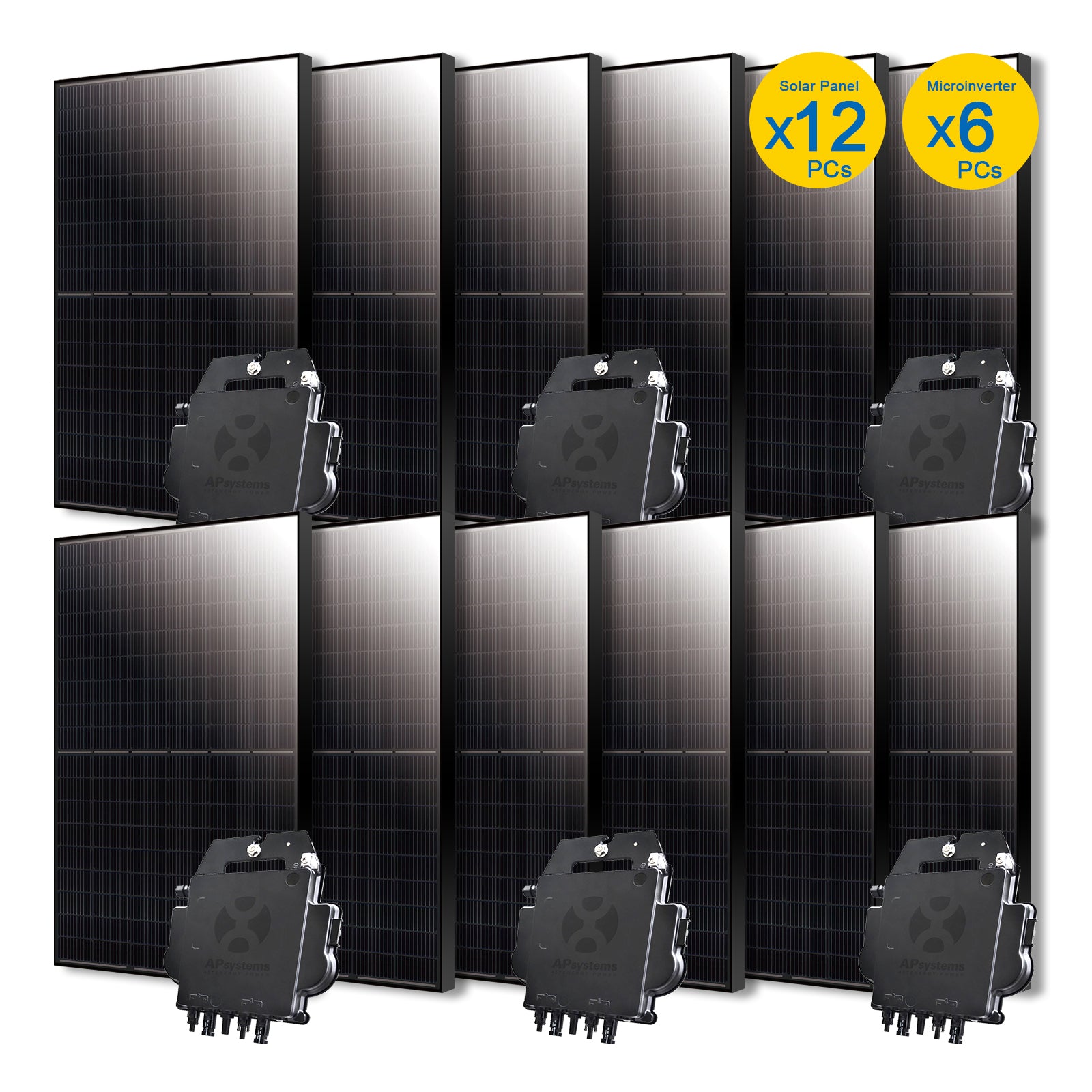

APsystems DS3 Microinveter

This Complete Microinverter Solar Grid Tie Kit 4.8~14.8KW,Including all the Hardware of the Whole System  is a great mid range power option. The 400W Solar Panels will fit nicely on almost any Roof and the Power they Produce will be Enough to Off set a Large Portion of your Electricity Usage Each Month. From Lighting, Television and Kitchen Appliance uses to More. Easily Expandable in the Future as Well if You Ever Want to add more Solar Panels.

What's Included With Your:

• 400W Tier-1 Monocrystalline Solar PanelsBlack - 25-Year Power Output Warranty
• Microinverters/Enphase/APSystems-10-Year Warranty
• 6*Bus Cable - 12AWG
• 6*AC Bus End Cap
• 1 x APS ECU-R Gateway
• 1 x Standard Wiring Schematic and Setup Guide
• Lifetime Customer Support (Phone, Email, Live Chat)

Why APsystems Microinverters?

APsystems offers advanced, powerful solar microinverter technology for residential and commercial systems. The APsystems microinverter solution combines highly efficient power inversion with user-friendly monitoring to bring you reliable, sustainable energy.

POWERFUL

APsystems microinverter installations are typically 5-15 percent more efficient than comparable “string” systems. That’s like having more solar modules on your roof with the same-sized array.

SMART

The APsystems Energy Monitoring and Analysis, or EMA software allows around-the-clock management of your solar array through any web-enabled device, like your home computer or smartphone.

COST EFFECTIVE

The APsystems microinverter is the affordable, flexible solution for your solar power array. The compact, independent design allows easy installation on virtually any available surface, and because it is an integrated system, the APsystems microinverter solution simplifies system design. Solar arrays can be easily expanded at any time, hassle-free.

The savings don’t stop there – APSystems microinverters track multiple PV modules (2 panels per micro in this kit) meaning you need half the inverters and half the installation means real cost savings for your residential or commercial solar power system.

SAFE

APsystems Microinverters tie directly to the low-voltage DC module, enhancing homeowner safety and eliminating the possibility of high-voltage “arc” fires. All APsystems products undergo rigorous factory testing, evaluation and field tracking, and are built to a 25-year design life.

APSystems DS3 Microinverter Features:

• Efficiency - 97.0%
• Warranty - 25 Years
• Nominal Voltage - 240VAC
• Maximum Output Power - 0.88kW (880 Watts each)
• Built In Meter
• Panel-level Optimization
• Smart Inverter Phase 1
• Smart Inverter Phase 1 with Tested
• Minimum Voltage: 26.0VDC
• Maximum Voltage: 60.0VDC

Solar Panel Specs:

• Rated Power Output [W]: 400
• Length [mm (in)]: 2031 mm (79.96 in)
• Width [mm (in)]: 1011 mm (39.8 in)
• Depth [mm (in)]: 30 mm (1.18 in)
• Weight [kg (lb)]: 26.8kg (59.08lbs)
• Warranty [Years]: 12

Solar Panel / Module Characteristics:

• Tier Level: Tier 1
• Pmax - Maximum Power (STC) [W]: 40-41
• Voc - Open Circuit Voltage (STC) [V]: 48-49
• Isc - Short Circuit Current (STC) [A]: 10.33
• Vmpp-Voltage at Maximum Power (STC) [V]: 40.8
• Impp-Current at Maximum Power (STC) [A]: 9.81
• Module Efficiency (STC) [%]: 19.5-20
• Pmax - Maximum Power (NOCT) [W]: 298-300
• Voc - Open Circuit Voltage (NOCT) [V]: 46.1-47
• Isc - Short Circuit Current (NOCT) [A]: 8.35
• Impp-Current at Maximum Power (NOCT) [A]: 7.72
• Vmpp-Voltage at Maximum Power (NOCT) [V]: 38.6
• Nominal Operating Cell Temperature (NOCT): 43±2°C
• Maximum System Voltage [V]: 1500V/DC(IEC)

Solar Panel / Module Specs:

• Frame Color: Anodized aluminium alloy
• Back Cover: Glass on Glass
• Frame size [mm]: 30
• Module Length [in]: 79-80
• Module Width [in]: 39-40
• Junction Box: IP68
• Output Cables: 1200mm
• Connector: Standard PV connectors
• Fire Safety Classification (IEC 61730): Class II
• Static Load Wind / Snow [Pa]: 2400Pa / 5400Pa
• Operating Temperature: -40°C ~ +85°C
• Temperature Coefficients of P [%/°C]: -0.26%/°C
• Temperature Coefficients of I (Isc): +0.043%/°C
• Warranty - 25-30 Year Power Output Warranty

APsystems - ECU-R, Zigbee CommunicationGateway for YC600I

The APsystems ECU-R is a state-of-the-art Energy Communication Unit. It is the information gateway for your microinverters. The unit collects module performance data from each individual microinverter and transfers this information to an internet database in real time, requiring only a single data and power cable.

Through the APsystems EMA software, the APsystems ECU gives you precise analysis of each microinverter and module in your solar installation from any web-connected device. The APsystems ECU’s integrated http webserver offers the simplest and most flexible network integration of any data logger on the market.

The user-friendly browser-based interface lets you access your solar array in seconds.

Key Features

• Collects individual module and microinverter statistics
• Communicates in real time
• 3-Year Warranty

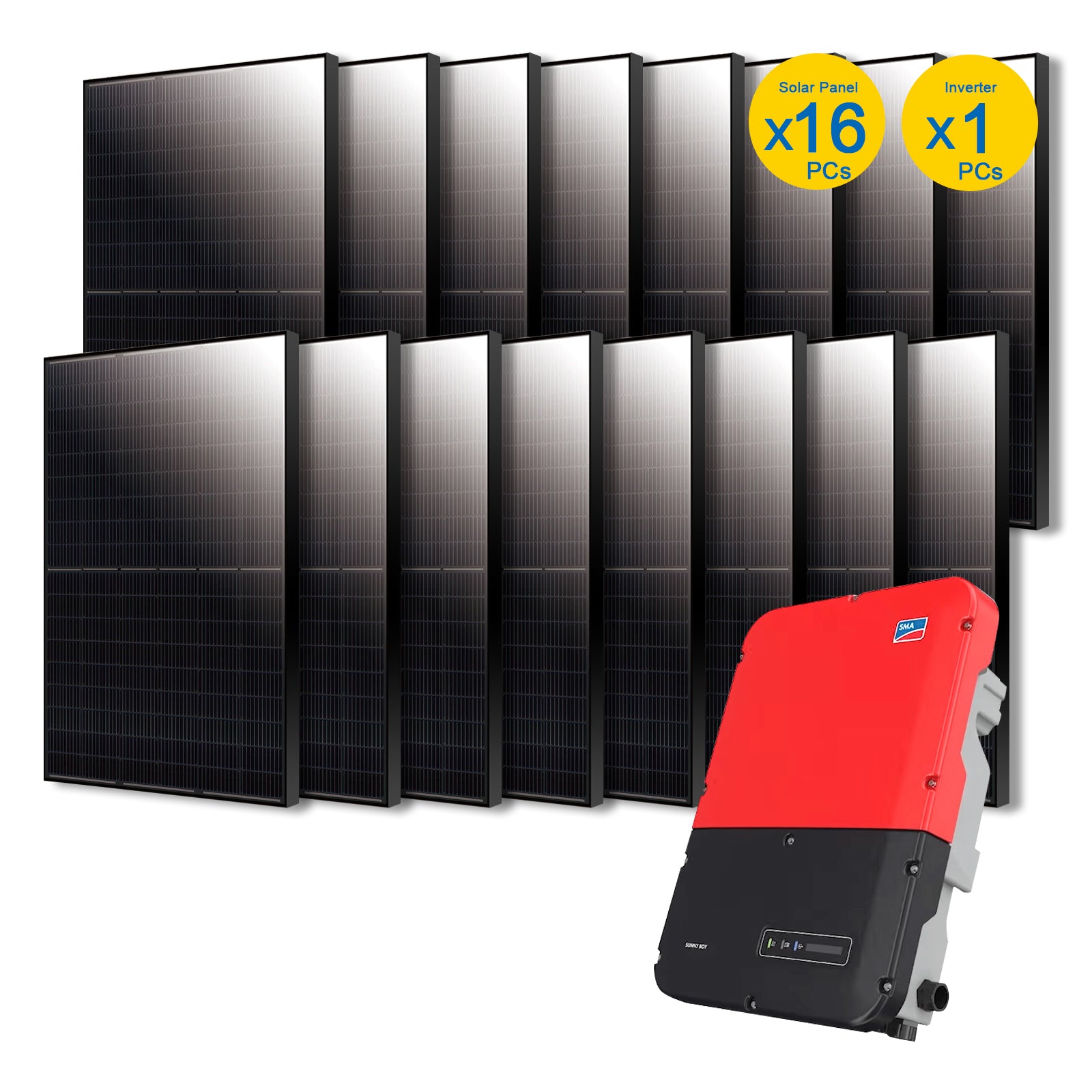

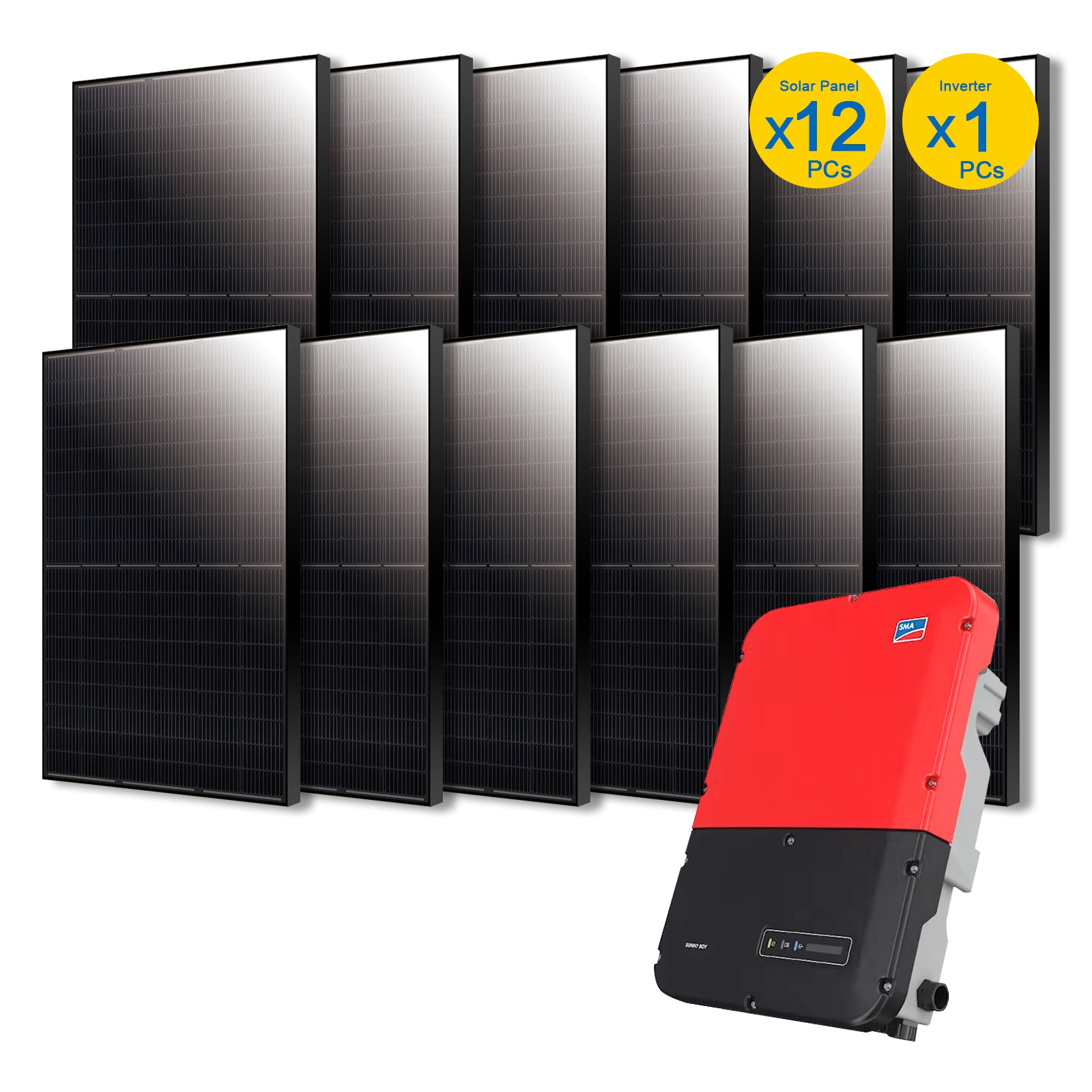

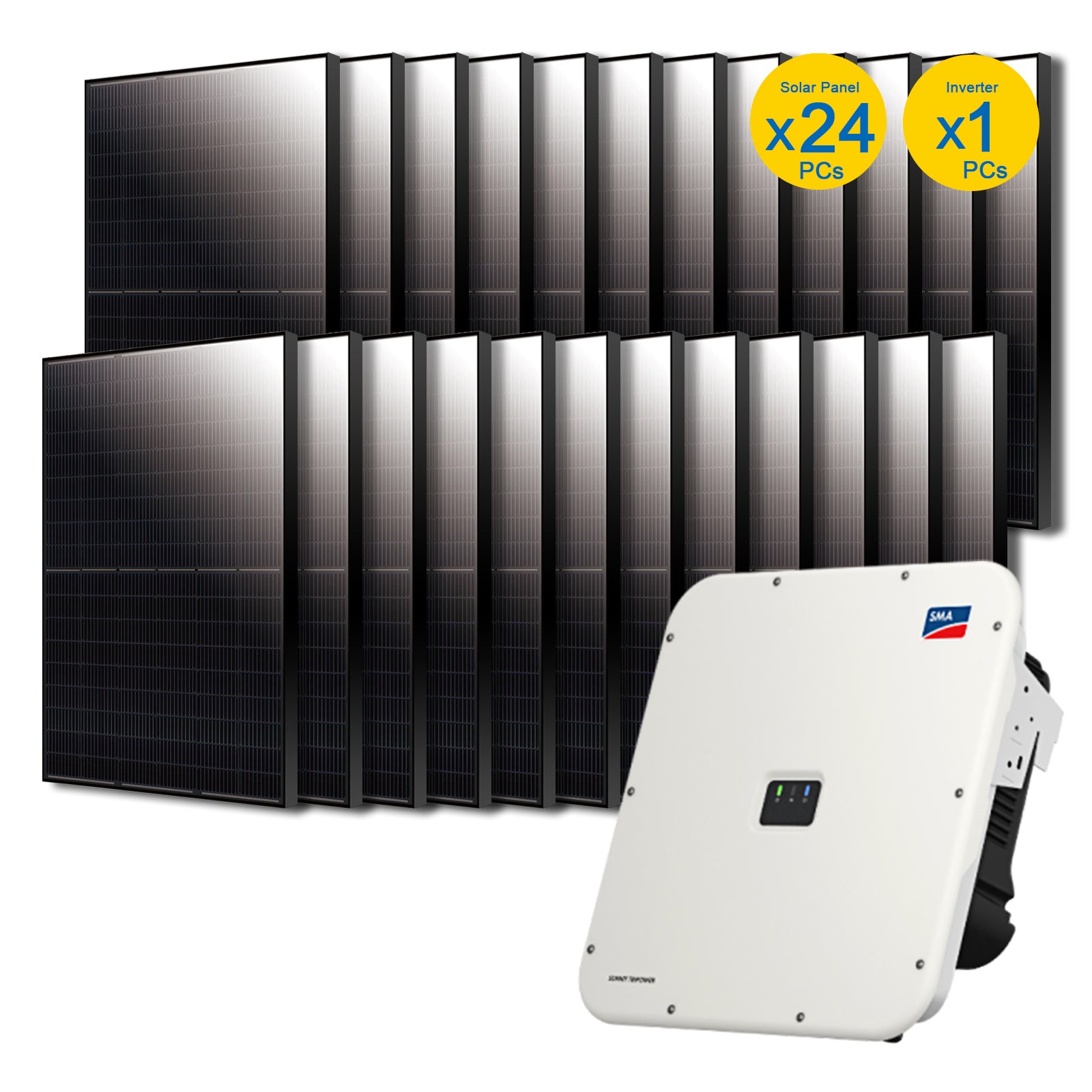

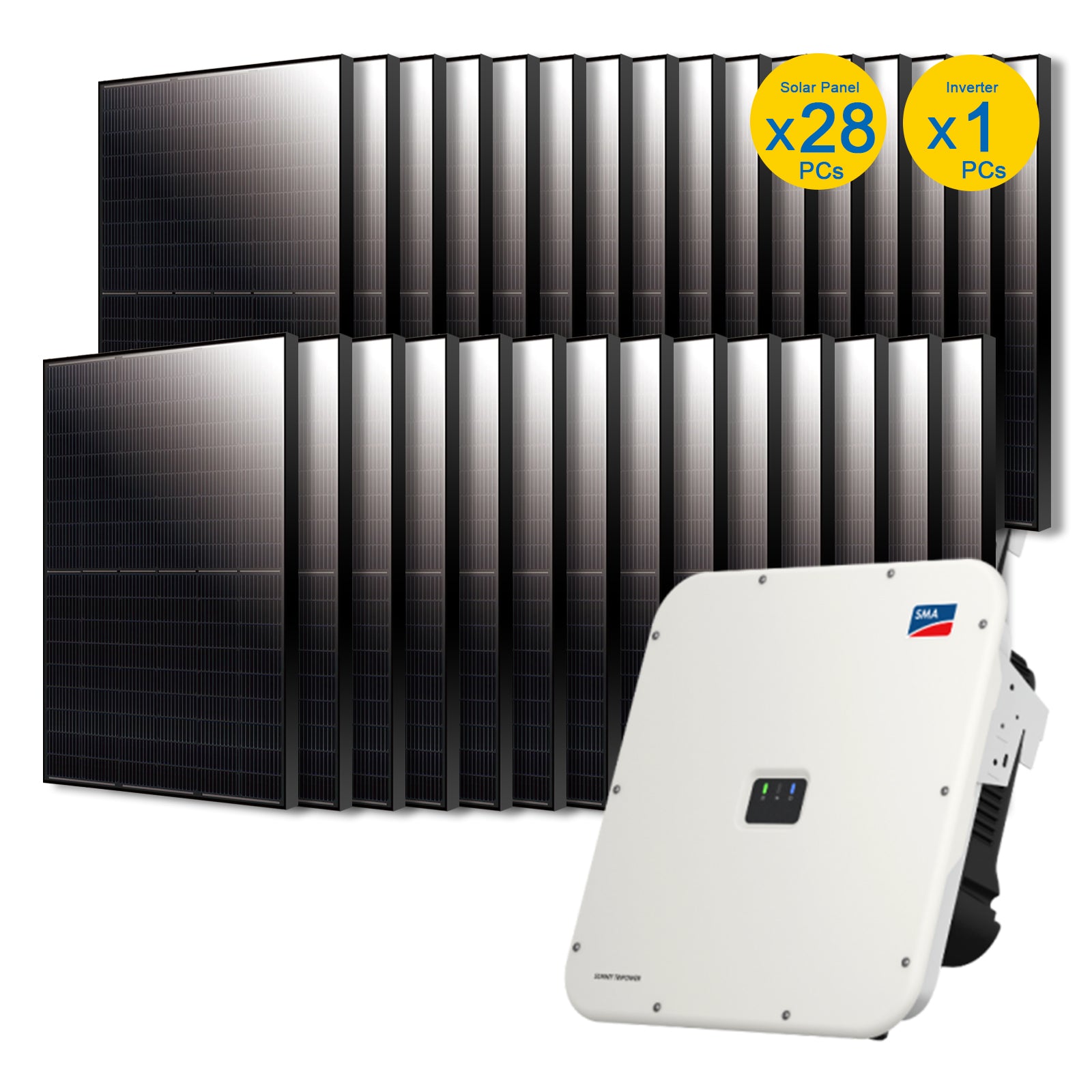

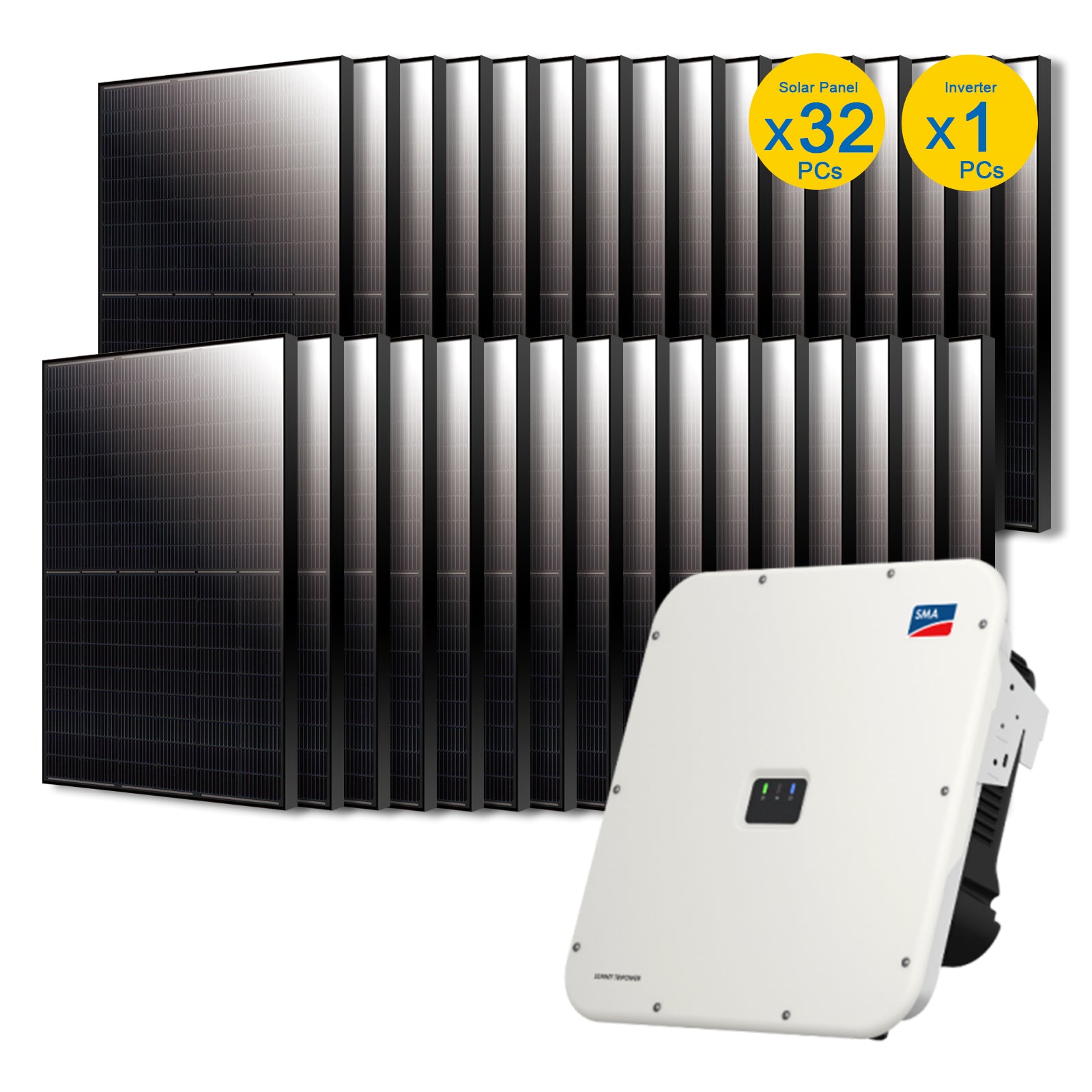

SMA String Inverter

 This Complete Solar Grid Tie Kit 4.8~14.8KW,Including all the Hardware of the Whole System  is a great mid range power option. The 400W Solar Panels will fit nicely on almost any Roof and the Power they Produce will be Enough to Off set a Large Portion of your Electricity Usage Each Month. From Lighting, Television and Kitchen Appliance uses to More. Easily Expandable in the Future as Well if You Ever Want to add more Solar Panels.

What's Included With Your:

• 400W Tier-1 Monocrystalline Solar PanelsBlack - 25-Year Power Output Warranty
• SMA Sunny BoyInverter

Why SMA Inverters?

• The residential PV market is changing rapidly. Your bottom line matters more than ever—so we’ve designed a superior residential solution to help you decrease costs at every stage of your business operations. The Sunny Boy 3.0-US/3.8-US/5.0-US/6.0-US/7.0-US/7.7-US join the SMA lineup of field-proven solar technology backed by the world’s #1 service team, along with a wealth of improvements. Simple design, improved stocking and ordering, value-driven sales support and streamlined installation are just some of the ways that SMA helps your business operate more efficiently. And, Sunny Boy’s superior integration with the innovative Power+ Solution means installers have even more flexibility in addressing their toughest challenges. Finally, SMA Smart Connected will automatically detect errors and initiate the repair and replacement process so that installers can reduce service calls and save time and money.

SMASunny Boy Technical Specifications:

Solar Panel Specs:

• Rated Power Output [W]: 400
• Length [mm (in)]: 2031 mm (79.96 in)
• Width [mm (in)]: 1011 mm (39.8 in)
• Depth [mm (in)]: 30 mm (1.18 in)
• Weight [kg (lb)]: 26.8kg (59.08lbs)
• Warranty [Years]: 12

Solar Panel / Module Characteristics:

• Tier Level: Tier 1
• Pmax - Maximum Power (STC) [W]: 40-41
• Voc - Open Circuit Voltage (STC) [V]: 48-49
• Isc - Short Circuit Current (STC) [A]: 10.33
• Vmpp-Voltage at Maximum Power (STC) [V]: 40.8
• Impp-Current at Maximum Power (STC) [A]: 9.81
• Module Efficiency (STC) [%]: 19.5-20
• Pmax - Maximum Power (NOCT) [W]: 298-300
• Voc - Open Circuit Voltage (NOCT) [V]: 46.1-47
• Isc - Short Circuit Current (NOCT) [A]: 8.35
• Impp-Current at Maximum Power (NOCT) [A]: 7.72
• Vmpp-Voltage at Maximum Power (NOCT) [V]: 38.6
• Nominal Operating Cell Temperature (NOCT): 43±2°C
• Maximum System Voltage [V]: 1500V/DC(IEC)

Solar Panel / Module Specs:

• Frame Color: Anodized aluminium alloy
• Back Cover: Glass on Glass
• Frame size [mm]: 30
• Module Length [in]: 79-80
• Module Width [in]: 39-40
• Junction Box: IP68
• Output Cables: 1200mm
• Connector: Standard PV connectors
• Fire Safety Classification (IEC 61730): Class II
• Static Load Wind / Snow [Pa]: 2400Pa / 5400Pa
• Operating Temperature: -40°C ~ +85°C
• Temperature Coefficients of P [%/°C]: -0.26%/°C
• Temperature Coefficients of I (Isc): +0.043%/°C
• Warranty - 25-30 Year Power Output Warranty

  Key Features
• Collects individual module and microinverter statistics
• Communicates in real time
• The residential PV market is changing rapidly. Your bottom line matters more than ever—so we’ve designed a superior residential solution to help you decrease costs at every stage of your business operations. The Sunny Boy 3.0-US/3.8-US/5.0-US/6.0-US/7.0-US/7.7-US join the SMA lineup of field-proven solar technology backed by the world’s #1 service team, along with a wealth of improvements.
