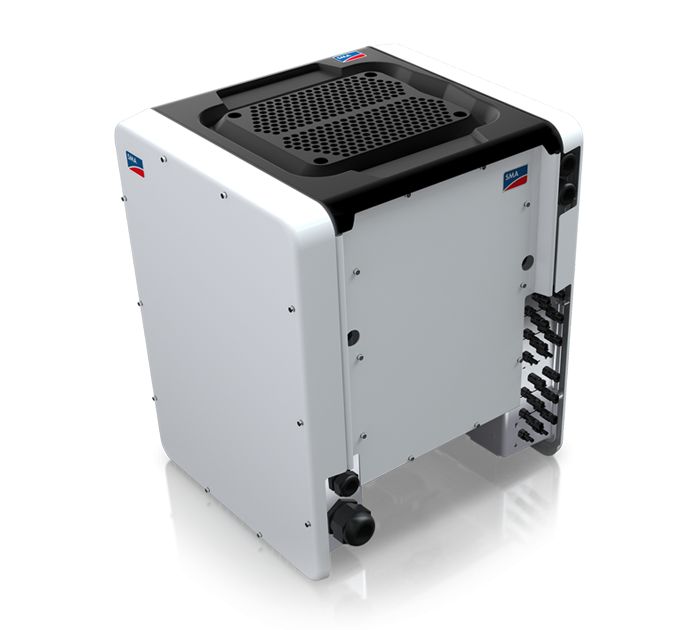

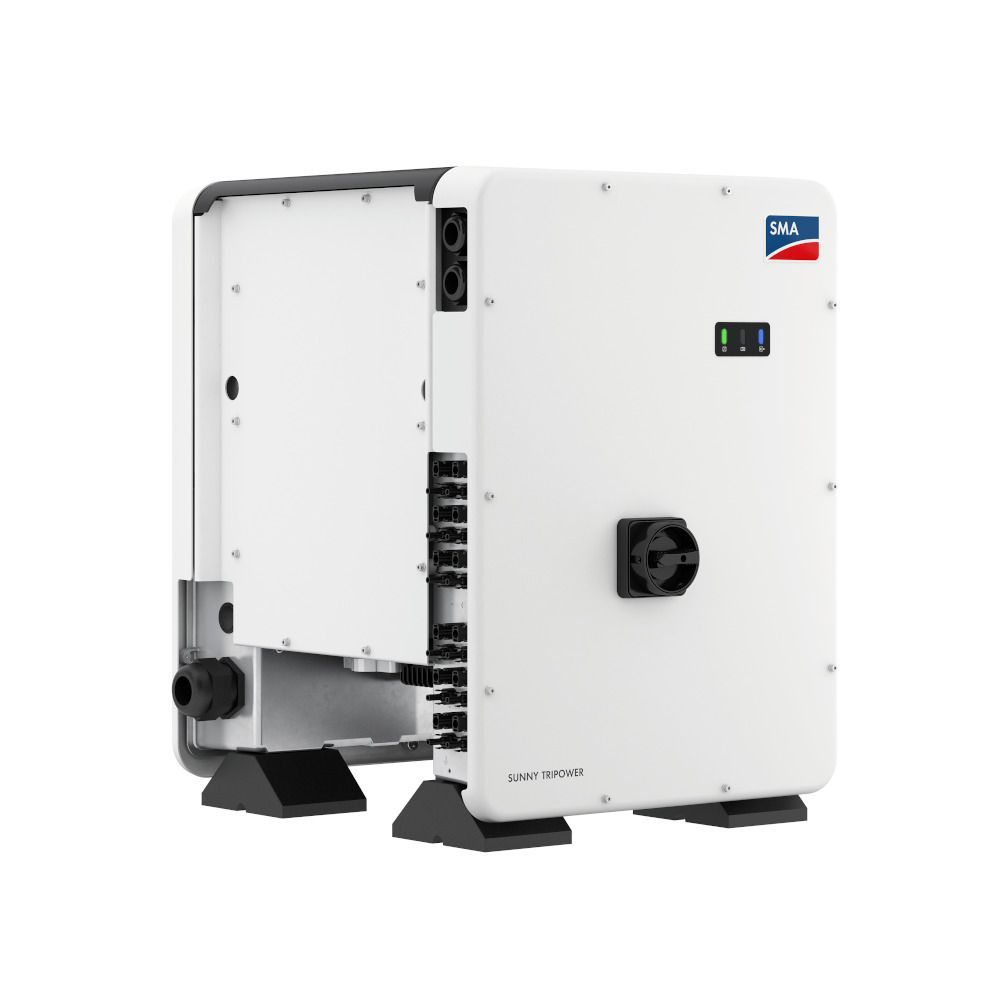

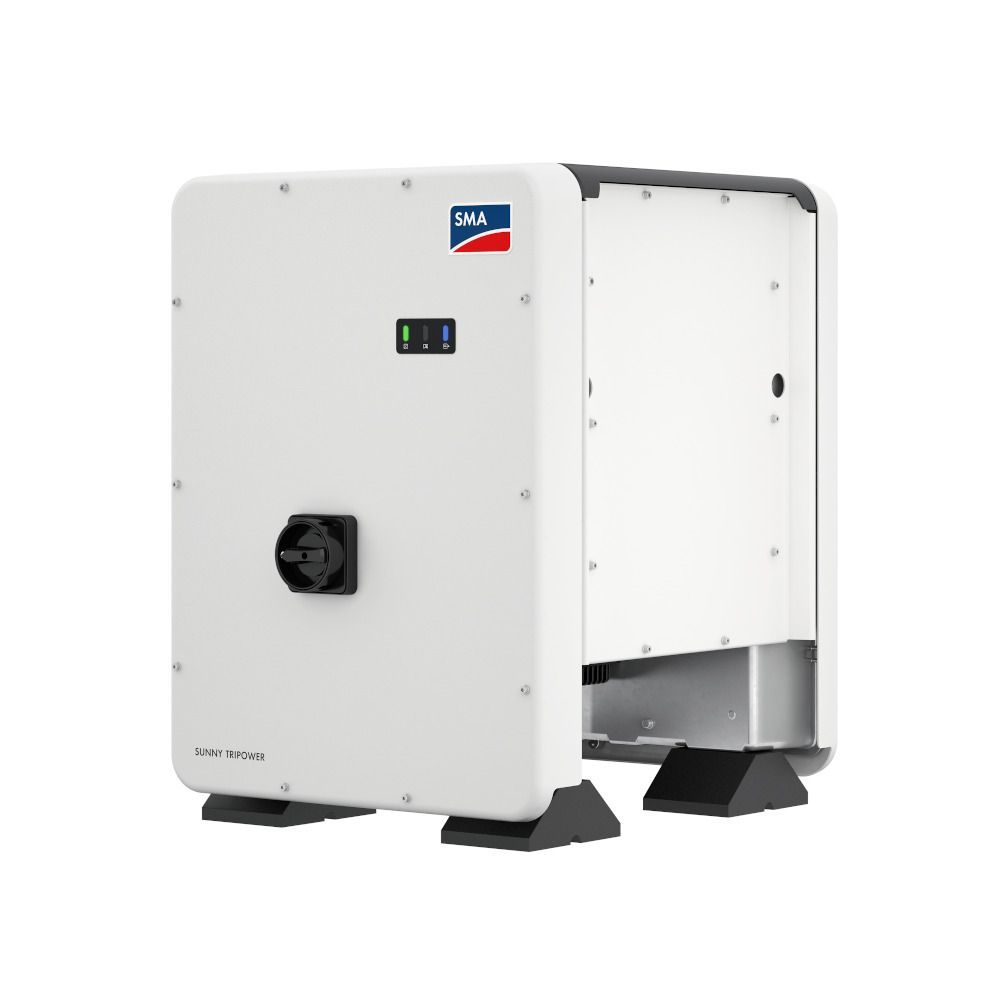

SMA SUNNY TRIPOWER CORE-1 STP62-US-41 62KW INVERTER

SMA, 03-62-100-2-41, Tripower Core1-50-us, Non-Isolated String Inverter, 50.0kW, 480/277V, 1000VDC, SA, SUNSPEC, STP62-US-41

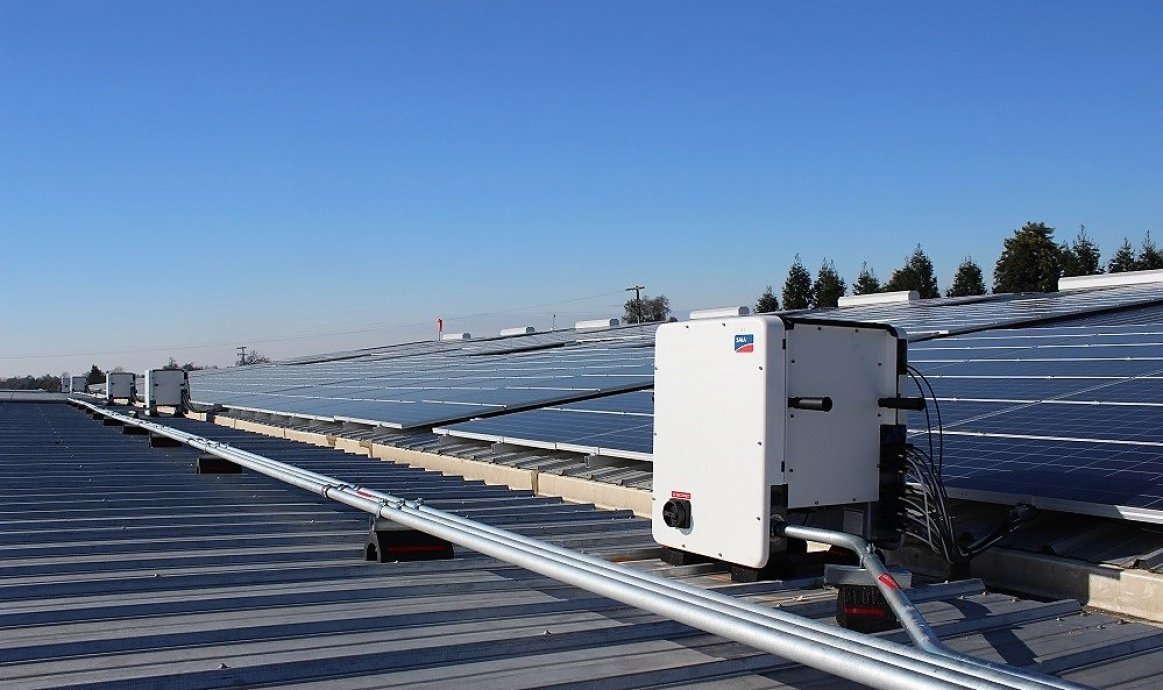

The Sunny Tripower CORE1 is the world’s first free-standing PV inverter for commercial rooftops, carports, ground mount and repowering legacy solar projects. Now with expanded features and new power classes, the CORE1 is the most versatile, cost-effective commercial solution available. From distribution to construction to operation, the Sunny Tripower CORE1 enables logistical, material, labor and service cost reductions. Integrated SunSpec PLC for rapid shutdown and enhanced DC AFCI arc-fault protection ensure compliance to the latest safety codes and standards. With Sunny Tripower CORE1 and SMA’s ennexOS cross sector energy management platform, system integrators can deliver comprehensive commercial energy solutions for increased ROI.

Features

• Fully Integrated and Flexible - Innovative design requires no additional racking for rooftop installation. Integrated DC and AC disconnects and over-voltage protection. 12 direct string inputs for reduced labor and material costs. Multiple power ratings for small to large scale commercial PV installations. Six MPP trackers for flexible stringing and maximum power production. OptiTrac™ Global Peak shade tolerant MPP tracking.

• Enhanced Safety and Reliability - Integrated SunSpec PLC signal for module-level rapid shutdown compliance to 2017 NEC. Next-gen DC AFCI arc-fault protection certified to new Standard UL 1699B.

• Smart Monitoring - Advanced smart inverter grid support capabilities. Increased ROI with SMA ennexOS cross sector energy management platform. SMA Smart Connected proactive O&M solution reduces time spent diagnosing and servicing in the field.

• Maximum Array Power:	93750 Wp STC
  Maximum System Voltage:	1000 Volts
  Rated MPPT Voltage Range:	550 V - 800 Volts
  AC Nominal Power:	62500 Watts
  Maximum Apparent Power:	66000 Va
  Maximum Output Current:	79.5 Amps
  Maximum Efficiency:	98%
