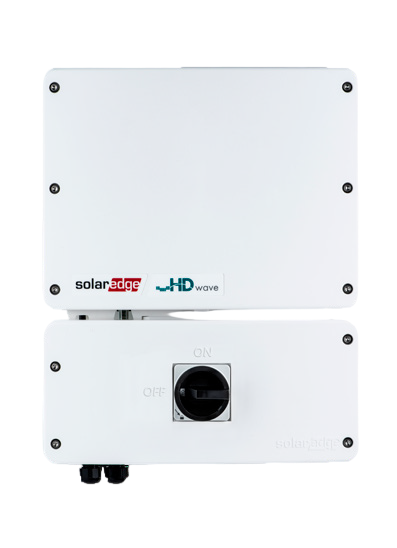

SOLAREDGE ENERGY HUB SE3800H-US 3.8KW INVERTER W/ RGM

SOLAREDGE ENERGY HUB SE3800H-US 3.8KW INVERTER W/ RGM

Vendor: SolarEdge
SKU: SE3800H-US
Availability: Out Of Stock
$1,998.00
$1,998.00
Terms & conditions
Description
Description
x

SolarEdge, Single Phase Energy Hub Inverter with Prism Technology, 3.8kW, w/ RGM and Consumption Monitoring, 5 year cellular plan, SE3800H-USS3BBC14

The performance of HD-Wave meets StorEdge in a next generation home backup solution for higher efficiency and greater flexibility.

The superior performance of HD-Wave and StorEdge come together to offer advanced home storage. When installed with a battery and backup interface, the Energy Hub DC-coupled solution provides high energy yield, allowing larger installs.

  • 200% DC over-sizing allows for larger systems: energy that would normally be lost in an AC-coupled solution can now be redirected to a battery for optimizing self-consumption
  • 90.8% overall system efficiency
  • More loads can be backed up to 200A - full home or partial
  • Power stack batteries for increased production and storage to keep the entire home covered1
  • Generator compatible

Features

  • Highlights - The SolarEdge Energy Hub residential inverter series offers record-breaking 99% weighted efficiency and allows 200% DC over-sizing. These lightweight and compact DC-coupled storage + PV inverters allow limited backup and include consumption monitoring standard, and allow a direct connection to the SolarEdge stand alone EV Charger.



echanical Data

Technology: Single Phase String Inverter w/ RGM
Dimensions:
 17.7 x 14.6 x 6.8 inches
Weight: 26 lbs
Consumption Metering: Built-In
Battery Storage: With Backup Interface Up to 200A; Up to 3 Inverters, 15kW Backup, and 60kWh Backup Capacity
EV Charging: Direct Connection to Smart EV Charger
Noise: < 25dBA
Cooling: Natural Convection
Protection Rating: NEMA 4X
Supported Communication Interfaces: RS485, Ethernet, Wi-Fi (Operational), Cellular
Revenue Grade Metering: Built-In
Inverter Commissioning: With the SetApp Mobile App via WiFi



Electrical Data

Output - AC on Grid

Rated AC Power: 3800W
Maximum AC Power Output: 3800W
AC Output Voltage: 211-264Vac
AC Frequency Range: Min: 59.3Hz; Nom: 60Hz; and Max: 60.5Hz
Maximum Continuous Output Current: 16 Amps
Utility Monitoring, Islanding Protection, County Configurable Thresholds: Yes
Charge Battery from AC (if Allowed): Yes
Typical Nighttime Power Consumption: < 2.5W
Output - AC Backup
Rated AC Power in Backup Operation: 3050W
Peak AC Power (<10 sec) in Backup Operation: 3400W
AC (L-L) Output Voltage Range in Backup: 211-264Vac
AC (L-N) Output Voltage Range in Backup: 105-132Vac
AC Frequency Range in Backup: Min: 55Hz; Nom: 60Hz; and Max: 65Hz
Maximum Continuous Output Current in Backup: 12.7 Amps
Peak AC Current (<10 sec) in Backup Operation: 14.2 Amps
Output - Smart EV Charger AC
Rated AC Power: 9600W
AC Output Voltage Range: 211-264Vac
AC Frequency Range: Min: 59.3Hz; Nom: 60Hz, and Max: 60.5Hz
Max. Continuous Output Current @240V (Grid, PV and Battery): 40Aac
Input - DC (PV and Battery)
Transformer-less, Ungrounded: Yes
Max. Input Voltage: 480Vdc
Nom DC Input Voltage: 350Vdc
Reverse-Polarity Protection: Yes
Ground-Fault Isolation Detection: 600kΩ Sensitivity
Input - DC (PV)
Max. DC Power: 7600W
Max. Input Current: 10.5Adc
Max. Input Short Circuit Current: 45Adc
Max. Inverter Efficiency: 99.2%
2-Pole Disconnection: Yes
Input - DC (Battery)
Supported Battery Types: LG Chem RESU10H
Number of Batteries per Inverter: 1 or 2
Max. Battery Capacity per Inverter: 19.6kWh
Continuous Power per Inverter: 5000W
Peak Power: 6900Adc
Max. Input Current @240V: 18Adc
2-Pole Disconnection: Yes
