The SolarEdge PV inverter combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability.
A proprietary data monitoring receiver has been integrated into the single phase solar inverter and aggregates the power optimizer performance data from each PV module. This data can be transmitted to the web and accessed via the SolarEdge monitoring portal for performance analysis, fault detection and troubleshooting of PV systems.
The single phase inverter comes with a built-in DC switch, is lightweight and can be installed by a single person on a supplied bracket.
Highlights - Specifically designed to work with power optimizers. Record-breaking efficiency. Fixed voltage inverter for longer strings. Integrated Arc Fault protection and Rapid Shutdown for NEC 2014 and 2017, per article 690.11 and 690.12. UL1741 SA certified, for CPUC Rule 21 grid compliance. Extremely small. Built-in module-level monitoring. Outdoor and indoor installation. Optional: Revenue grade data, ANSI C12.20 Class 0.5 (0.5% accuracy).

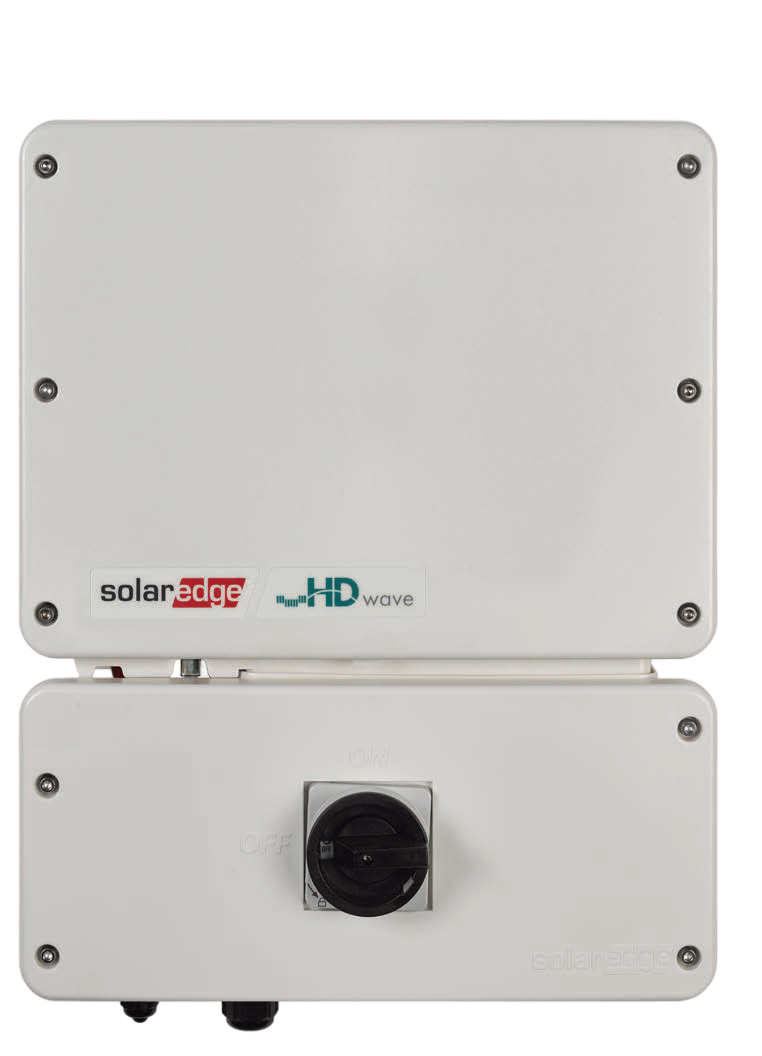

Single Phase String Inverter
17.70 x 14.60 x 6.80 inches
AC Output Conduit Size:
3/4" Minimum / 14-6 AWG
DC Output Conduit Size:
3/4" Minimum / 1-2 Strings / 14-6 AWG
NEMA 4X (Inverter with Safety Switch)
Rated AC Power Output:
Maximum AC Power Output:
AC Output Voltage:
Minimum: 211VAC; Nominal: 240VAC; and Maximum: 264VAC
AC Frequency (Nominal):
Minimum: 59.30Hz; Nominal: 60.00Hz; and Maximum: 60.50Hz
Maximum Continuous Output Current @240V:
Utility Monitoring, Islanding Protection, County Configurable Set Points:
