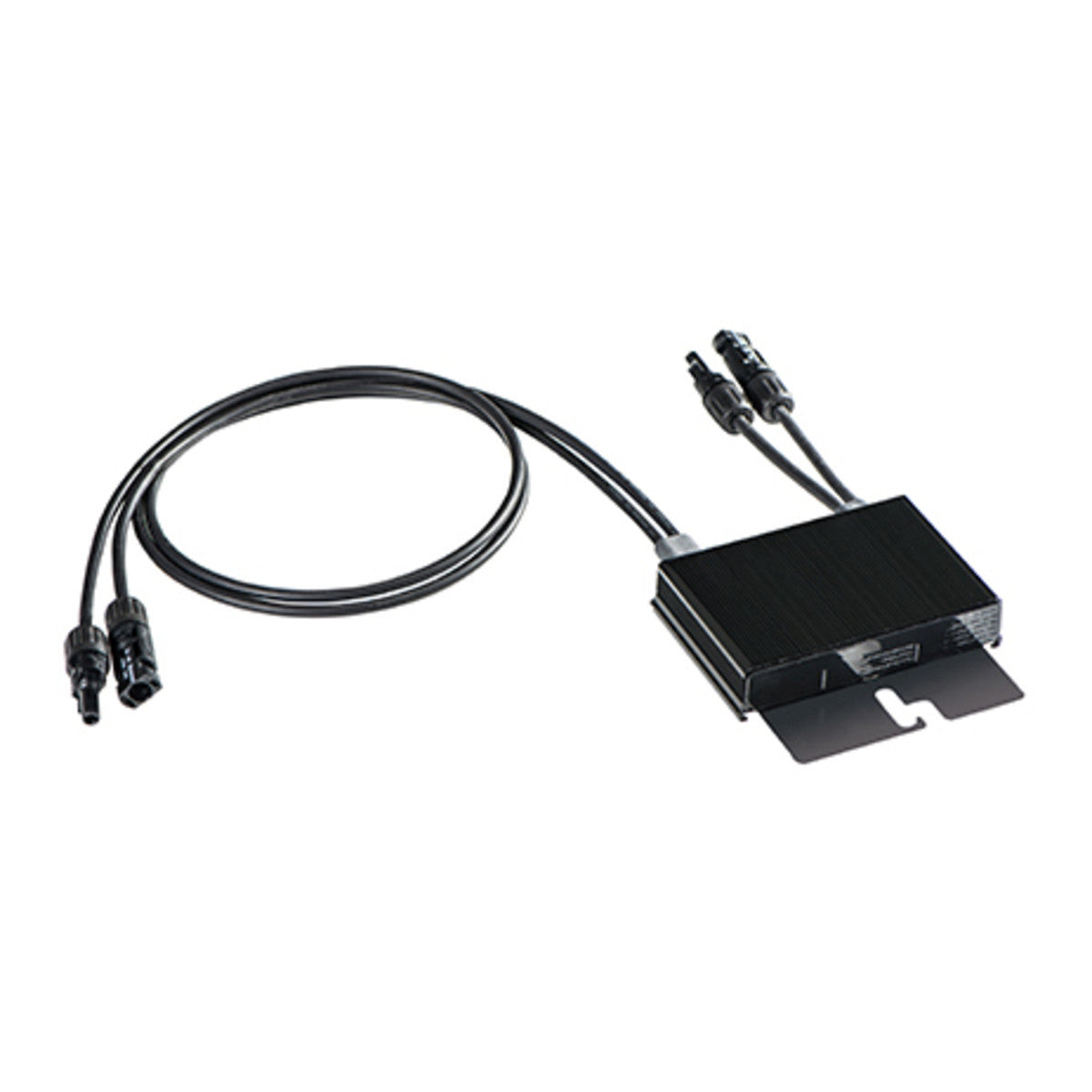

The SolarEdge module add-on power optimizer is connected by installers to C-Si and thin-film modules. Ease of installation is completed by simply clipping the power optimizer to the module frame or by attaching it to the rail with a single screw. The add-on power optimizer is compatible with Zep Groove framed modules. The SolarEdge power optimizer attaches to the module frame with the certified Zep Compatible™ bracket without screws which reduces on-roof labor and mounting costs.
Efficiency - Up to 25% more energy. Superior efficiency (99.5%). Mitigates all types of module mismatch losses, from manufacturing tolerance to partial shading. Flexible system design for maximum space utilization. Fast installation with a single bolt. Next generation maintenance with module-level monitoring. Module-level voltage shutdown for installer and firefighter safety.
5.1 x 6 x 1.1 Inches
All SolarEdge Single Phase and Three Phase Inverters
Minimum/Maximum String Length:
Single Phase and HD-Wave: 8/25, Three Phase: 16/50, Three Phase 277/480V: 18/50
