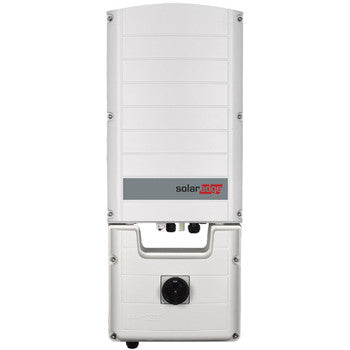

SOLAREDGE 17.3KW STRING INVERTER - SE17.3K-USR2IBNZ4 |
SolarEdge, Three Phase inverter, 17.3kW, (-40° to 60°C) 208V - with AC RSD, DC Safety Switch, DC Fuses and AFCI, SE17.3K-USR2IBNZ4 SetAPP Commercial Series is quick and easy to commission via SolarEdge SetAPP on your smart phone. Designed for use with SolarEdge Commercial Optimizers and Compliant with NEC 2017 PV RSS. 17.3kW unit has a max DC input of 26kW (STC). SolarEdge inverters are designed to be paired with a SolarEdge Optimizer on each module. |
Features
|
Mechanical Data |
|
Technology: | Three Phase String Inverter |
Dimensions w/ Safety Switch: | 31.8 x 12.5 x 11.8 inches |
Weight w/ Safety Switch: | 78.2 lbs |
Cooling: | Fans (User Replaceable) |
Mounting: | Bracket (Included) |
Electrical Data |
|
Output | |
Rated AC Power Output: | 17300VA |
Maximum AC Power Output: | 17300VA |
AC Output Line Connections: |
3W + PE, 4W + PE |
AC Output Voltage (L-N): | Minimum: 105VAC; Nominal: 120VAC; and Maximum: 132.5VAC |
AC Output Voltage (L-L): | Minimum: 183VAC; Nominal: 208VAC; and Maximum: 229VAC |
AC Frequency: | Minimum: 59.3Hz; Nominal: 60Hz; and Maximum: 60.5Hz |
Maximum Continuous Output Current: | 48.25 Amps per Phase |
GFDI Threshold: | 1 |
Utility Monitoring, Islanding Protection, County Configurable Set Points: | Yes |
Input | |
Maximum DC Power (Module STC): | 26000 Watts |
Transformer-Less Ungrounded: | Yes |
Maximum Input Voltage DC+ to DC-: | 600 VDC |
Nominal Input Voltage DC+ to DC-: | 400 VDC |
Maximum Input Current: | 48.25 ADC |
Maximum Input Short Circuit Current: | 55 ADC |
Reverse-Polarity Protection: | Yes |
Ground-Fault Isolation Detection: | 167kΩ Sensitivity |
CEC Weighted Efficiency: | 97.5% |
Night-Time Power Consumption: | < 4 Watts |
